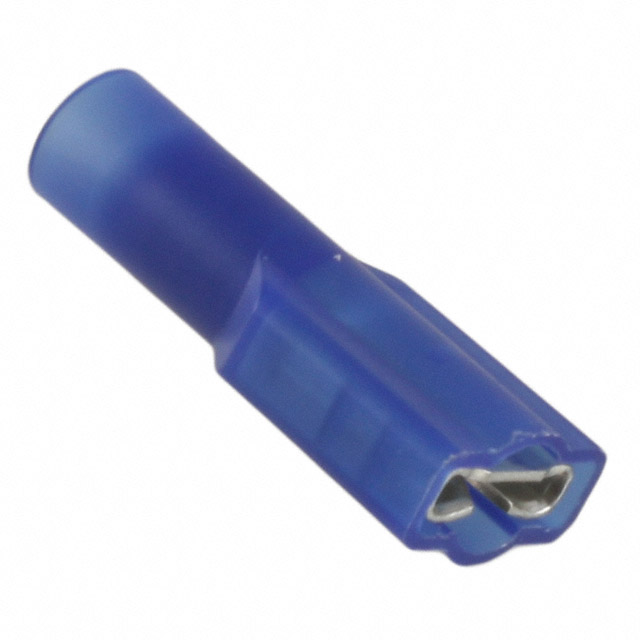

MNU14-250DFIK

Active

3M (TC)

QUICK DISCONNECT TERMINAL, SCOTCHLOK SERIES, FEMALE QUICK DISCONNECT, 6.35MM X 0.81MM

Search across all available documentation for this part.

Active

3M (TC)

QUICK DISCONNECT TERMINAL, SCOTCHLOK SERIES, FEMALE QUICK DISCONNECT, 6.35MM X 0.81MM

Technical Specifications

Parameters and characteristics for this part

Specification	MNU14-250DFIK

Color	Blue
Contact Finish	Tin
Contact Material	Brass
Features	Butted Seam
Gender	Female
Insulation	Fully Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall [x]	22.1 mm
Length - Overall [x]	0.87 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp

Part	Length - Overall [x]	Length - Overall [x]	Contact Material	Contact Finish	Terminal Type	Insulation	Color	Material - Insulation	Termination	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Features	Insulation Diameter	Insulation Diameter [diameter]	Gender	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Mounting Type
3M (TC) MNU14-156DFIK	1.02 in	25.91 mm	Brass	Tin	Female Receptacle (Socket)	Fully Insulated	Blue	Nylon Polyamide (PA)	Crimp	3.96 mm	0.156 in
3M (TC) MNU14-180DFIK-A	1.02 in	25.91 mm	Brass	Tin	Female Receptacle (Socket)	Fully Insulated	Blue	Nylon Polyamide (PA)	Crimp			Butted Seam	3.68 mm	0.145 "
3M (TC) MNU14-250DFIK	0.87 in	22.1 mm	Brass	Tin	Standard	Fully Insulated	Blue		Crimp			Butted Seam	3.68 mm	0.145 "	Female	0.032 in	0.81 mm	6.35 mm	0.25 in	Free Hanging (In-Line)
3M (TC) MNU14-250DMIX-BOTTLE	0.95 in	24.13 mm	Copper ETP	Tin	Standard	Fully Insulated	Blue		Crimp			Butted Seam			Male	0.032 in	0.81 mm	6.35 mm	0.25 in	Free Hanging (In-Line)
3M (TC) MNU14-187DFIK	0.81 in	20.57 mm	Brass	Tin	Standard	Fully Insulated	Blue		Crimp			Butted Seam	3.68 mm	0.145 "	Female	0.02 "	0.51 mm	4.75 mm	0.187 in	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
