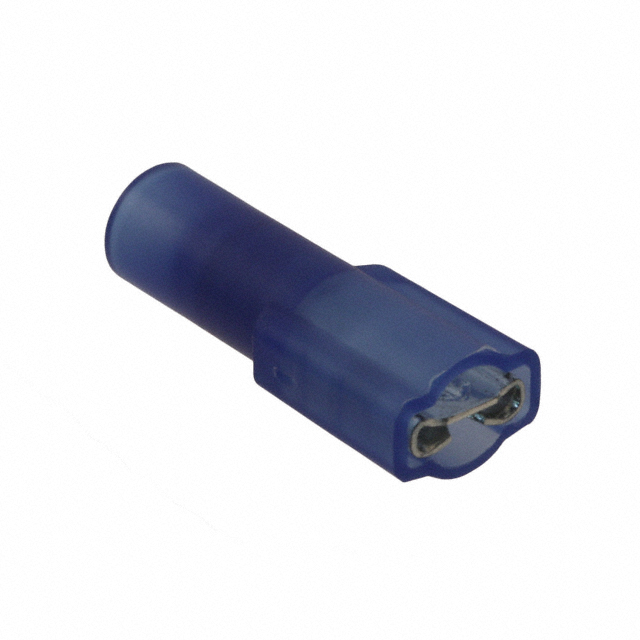

MNU14-187DFIK

Active

3M (TC)

FULLY NYLON INSULATED BUTTED SEAM FEMALE DISCONNECT

Search across all available documentation for this part.

Active

3M (TC)

FULLY NYLON INSULATED BUTTED SEAM FEMALE DISCONNECT

Technical Specifications

Parameters and characteristics for this part

Specification	MNU14-187DFIK

Color	Blue
Contact Finish	Tin
Contact Material	Brass
Features	Butted Seam
Gender	Female
Insulation	Fully Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall [x]	20.57 mm
Length - Overall [x]	0.81 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Standard
Termination	Crimp

Part	Length - Overall [x]	Length - Overall [x]	Contact Material	Contact Finish	Terminal Type	Insulation	Color	Material - Insulation	Termination	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Features	Insulation Diameter	Insulation Diameter [diameter]	Gender	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Mounting Type
3M (TC) MNU14-156DFIK	1.02 in	25.91 mm	Brass	Tin	Female Receptacle (Socket)	Fully Insulated	Blue	Nylon Polyamide (PA)	Crimp	3.96 mm	0.156 in
3M (TC) MNU14-180DFIK-A	1.02 in	25.91 mm	Brass	Tin	Female Receptacle (Socket)	Fully Insulated	Blue	Nylon Polyamide (PA)	Crimp			Butted Seam	3.68 mm	0.145 "
3M (TC) MNU14-250DFIK	0.87 in	22.1 mm	Brass	Tin	Standard	Fully Insulated	Blue		Crimp			Butted Seam	3.68 mm	0.145 "	Female	0.032 in	0.81 mm	6.35 mm	0.25 in	Free Hanging (In-Line)
3M (TC) MNU14-250DMIX-BOTTLE	0.95 in	24.13 mm	Copper ETP	Tin	Standard	Fully Insulated	Blue		Crimp			Butted Seam			Male	0.032 in	0.81 mm	6.35 mm	0.25 in	Free Hanging (In-Line)
3M (TC) MNU14-187DFIK	0.81 in	20.57 mm	Brass	Tin	Standard	Fully Insulated	Blue		Crimp			Butted Seam	3.68 mm	0.145 "	Female	0.02 "	0.51 mm	4.75 mm	0.187 in	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.187" (4.75mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
