BG306-06-A-2-0400-L-B

Active

GCT

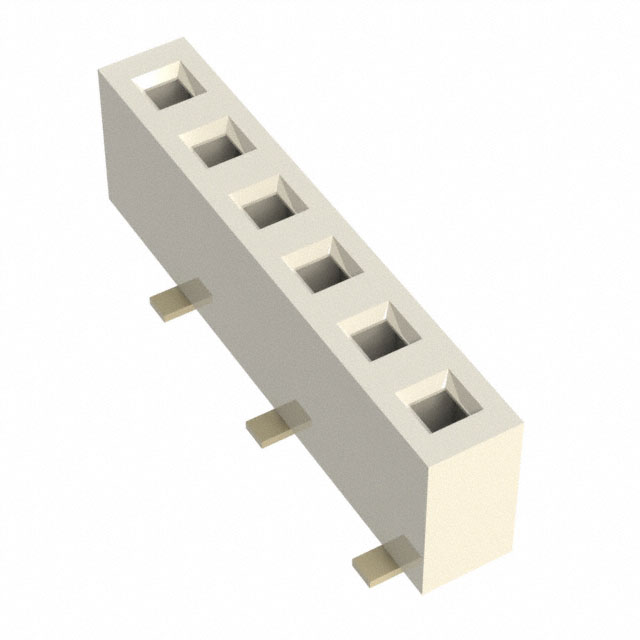

6W, 2.54MM PITCH SOCKET, SIL, SMT, VERT, R2, GF, LCP NAT, T+R+C ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

GCT

6W, 2.54MM PITCH SOCKET, SIL, SMT, VERT, R2, GF, LCP NAT, T+R+C ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	BG306-06-A-2-0400-L-B

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.197 in
Insulation Height	5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

Part	Number of Rows	Pitch - Mating	Pitch - Mating	Connector Type	Material Flammability Rating	Contact Shape	Contact Material	Contact Type	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insulation Color	Insulation Height	Insulation Height	Number of Positions	Termination	Mounting Type	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Mating
GCT BG306-02-A-1-0400-L-G	1	0.1 in	2.54 mm	Receptacle	UL94 V-0	Square	Phosphor Bronze	Female Socket	All	Flash	Gold	-40 °C	105 ░C	Push-Pull	Natural	0.197 in	5 mm	2	Solder	Surface Mount	3 A	Gold	Flash
GCT BG306-03-A-2-0400-L-B	1	0.1 in	2.54 mm	Receptacle	UL94 V-0	Square	Phosphor Bronze	Female Socket	All	Flash	Gold	-40 °C	105 ░C	Push-Pull	Natural	0.197 in	5 mm		Solder	Surface Mount	3 A	Gold	Flash
GCT BG306-04-A-2-0400-L-B	1	0.1 in	2.54 mm	Receptacle	UL94 V-0	Square	Phosphor Bronze	Female Socket	All	Flash	Gold	-40 °C	105 ░C	Push-Pull	Natural	0.197 in	5 mm	4	Solder	Surface Mount	3 A	Gold	Flash
GCT BG306-06-A-2-0400-L-B	1	0.1 in	2.54 mm	Receptacle	UL94 V-0	Square	Phosphor Bronze	Female Socket	All	Flash	Gold	-40 °C	105 ░C	Push-Pull	Natural	0.197 in	5 mm	6	Solder	Surface Mount	3 A	Gold	Flash
GCT BG306-05-A-2-0400-L-B	1	0.1 in	2.54 mm	Receptacle	UL94 V-0	Square	Phosphor Bronze	Female Socket	All	Flash	Gold	-40 °C	105 ░C	Push-Pull	Natural	0.197 in	5 mm		Solder	Surface Mount	3 A	Gold	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4800	$ 0.62
Newark	Each	1000	$ 0.85

General part information

6 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
