BG306-05-A-2-0400-L-B

Active

GCT

5W, 2.54MM PITCH SCK, SIL, SMT,

Search across all available documentation for this part.

Active

GCT

5W, 2.54MM PITCH SCK, SIL, SMT,

Technical Specifications

Parameters and characteristics for this part

Specification	BG306-05-A-2-0400-L-B

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.197 in
Insulation Height	5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

Part	Number of Rows	Pitch - Mating	Pitch - Mating	Connector Type	Material Flammability Rating	Contact Shape	Contact Material	Contact Type	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insulation Color	Insulation Height	Insulation Height	Number of Positions	Termination	Mounting Type	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Mating
GCT BG306-02-A-1-0400-L-G	1	0.1 in	2.54 mm	Receptacle	UL94 V-0	Square	Phosphor Bronze	Female Socket	All	Flash	Gold	-40 °C	105 ░C	Push-Pull	Natural	0.197 in	5 mm	2	Solder	Surface Mount	3 A	Gold	Flash
GCT BG306-03-A-2-0400-L-B	1	0.1 in	2.54 mm	Receptacle	UL94 V-0	Square	Phosphor Bronze	Female Socket	All	Flash	Gold	-40 °C	105 ░C	Push-Pull	Natural	0.197 in	5 mm		Solder	Surface Mount	3 A	Gold	Flash
GCT BG306-04-A-2-0400-L-B	1	0.1 in	2.54 mm	Receptacle	UL94 V-0	Square	Phosphor Bronze	Female Socket	All	Flash	Gold	-40 °C	105 ░C	Push-Pull	Natural	0.197 in	5 mm	4	Solder	Surface Mount	3 A	Gold	Flash
GCT BG306-06-A-2-0400-L-B	1	0.1 in	2.54 mm	Receptacle	UL94 V-0	Square	Phosphor Bronze	Female Socket	All	Flash	Gold	-40 °C	105 ░C	Push-Pull	Natural	0.197 in	5 mm	6	Solder	Surface Mount	3 A	Gold	Flash
GCT BG306-05-A-2-0400-L-B	1	0.1 in	2.54 mm	Receptacle	UL94 V-0	Square	Phosphor Bronze	Female Socket	All	Flash	Gold	-40 °C	105 ░C	Push-Pull	Natural	0.197 in	5 mm		Solder	Surface Mount	3 A	Gold	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4800	$ 0.55

General part information

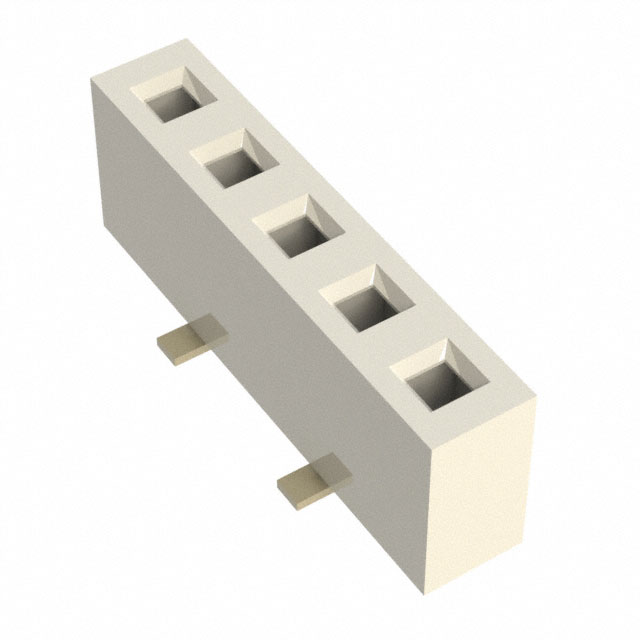

5 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
