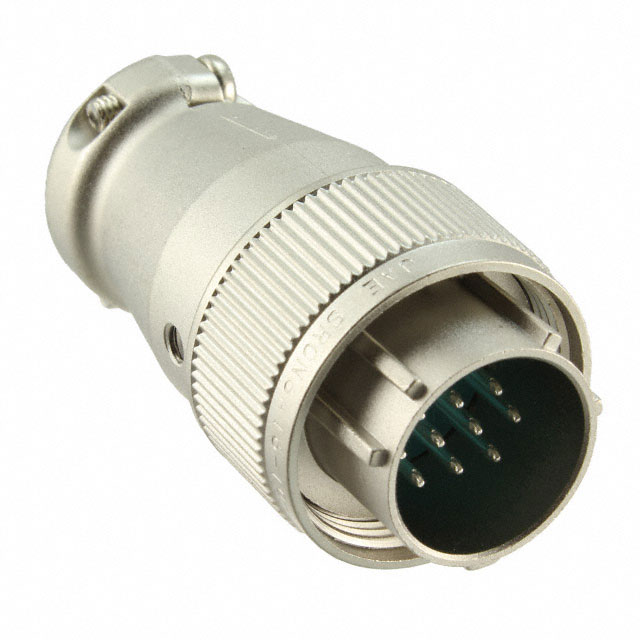

SRCN6A16-10P

Active

JAE Electronics

CONN PLUG MALE 10P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCircular Connectors Datasheet

SRCN6A16-10P

Active

JAE Electronics

CONN PLUG MALE 10P SOLDER CUP

Deep-Dive with AI

DocumentsCircular Connectors Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRCN6A16-10P

Applications	Communication Systems, Telecommunications, Test Equipment & Measurement
Backshell Material, Plating	Aluminum Alloy, Nickel
Cable Opening [custom]	0.453 in
Cable Opening [custom]	11.51 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Cable Clamp, Coupling Nut, Backshell
Insert Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	16-10
Voltage Rating	350 V, 250 VAC

SRCN6A16 Series

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Finish	Primary Material	Contact Material	Shell Material	Material Flammability Rating	Orientation	Applications	Shell Size - Insert	Contact Finish - Mating	Voltage Rating	Mounting Type	Current Rating (Amps)	Backshell Material, Plating	Features	Insert Material	Color	Cable Opening [custom]	Cable Opening [custom]
JAE Electronics SRCN6A16-7P-J2	7	-25 °C	85 °C	Male Pins Plug	Nickel	Metal	Copper Alloy	Aluminum Alloy	UL94 V-0	N	Communication Systems Telecommunications Test Equipment & Measurement
JAE Electronics SRCN6A16-10S	10	-25 °C	85 °C	Female Sockets Plug	Nickel	Metal	Copper Alloy	Aluminum Alloy	UL94 V-0	N	Communication Systems Telecommunications Test Equipment & Measurement	16-10	Silver	250 VAC 350 V	Free Hanging (In-Line)	5 A	Aluminum Alloy Nickel	Backshell Cable Clamp Coupling Nut	Plastic	Silver	0.453 in	11.51 mm
JAE Electronics SRCN6A16-7S	7	-25 °C	85 °C	Female Sockets Plug	Nickel	Metal	Copper Alloy	Aluminum Alloy	UL94 V-0	N	Communication Systems Telecommunications Test Equipment & Measurement		Silver	250 VAC 350 V	Free Hanging (In-Line)	10 A	Aluminum Alloy Nickel	Backshell Cable Clamp Coupling Nut	Plastic	Silver	0.453 in	11.51 mm
JAE Electronics SRCN6A16-7P	7	-25 °C	85 °C	Male Pins Plug	Nickel	Metal	Copper Alloy	Aluminum Alloy	UL94 V-0	N	Communication Systems Telecommunications Test Equipment & Measurement		Silver	250 VAC 350 V	Free Hanging (In-Line)	10 A	Aluminum Alloy Nickel	Backshell Cable Clamp Coupling Nut	Plastic	Silver	0.453 in	11.51 mm
JAE Electronics SRCN6A16-10P	10	-25 °C	85 °C	Male Pins Plug	Nickel	Metal	Copper Alloy	Aluminum Alloy	UL94 V-0	N	Communication Systems Telecommunications Test Equipment & Measurement	16-10	Silver	250 VAC 350 V	Free Hanging (In-Line)	5 A	Aluminum Alloy Nickel	Backshell Cable Clamp Coupling Nut	Plastic	Silver	0.453 in	11.51 mm
JAE Electronics SRCN6A16-7S-J1	7	-25 °C	85 °C	Female Sockets Plug	Nickel	Metal	Copper Alloy	Aluminum Alloy	UL94 V-0	N	Communication Systems Telecommunications Test Equipment & Measurement

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.18
		10	$ 10.79
		25	$ 10.38
		50	$ 9.96
		100	$ 9.41
		250	$ 8.58
		500	$ 8.03
		1000	$ 7.36

Description

General part information

SRCN6A16 Series

10 Position Circular Connector Plug, Male Pins Solder Cup
