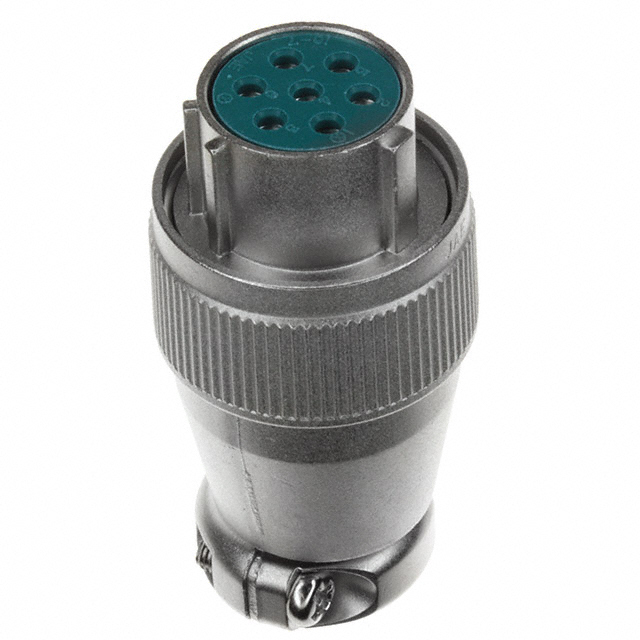

SRCN6A16-7S
ActiveJAE Electronics
CONN PLUG FMALE 7P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
SRCN6A16-7S
ActiveJAE Electronics
CONN PLUG FMALE 7P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRCN6A16-7S |
|---|---|
| Applications | Communication Systems, Telecommunications, Test Equipment & Measurement |
| Backshell Material, Plating | Aluminum Alloy, Nickel |
| Cable Opening [custom] | 0.453 in |
| Cable Opening [custom] | 11.51 mm |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 10 A |
| Features | Cable Clamp, Coupling Nut, Backshell |
| Insert Material | Plastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Aluminum Alloy |
| Voltage Rating | 350 V, 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.87 | |
| 10 | $ 10.52 | |||
| 25 | $ 10.11 | |||
| 50 | $ 9.71 | |||
| 100 | $ 9.17 | |||
| 250 | $ 8.36 | |||
| 500 | $ 7.82 | |||
| 1000 | $ 7.17 | |||
Description
General part information
SRCN6A16 Series
7 Position Circular Connector Plug, Female Sockets Solder Cup
