09140160371 - 09140160371

09140160371

Active
HARTING Technology Group

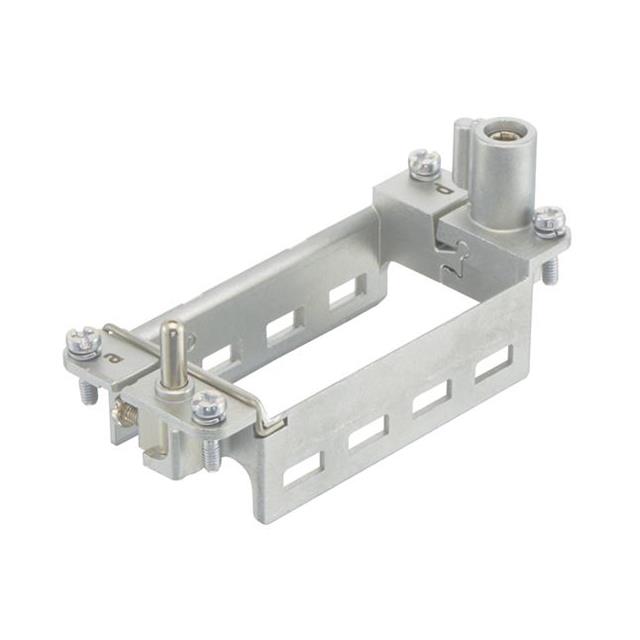

CONNECTOR ACCESSORY, 4 MOD, HINGED FRAME, HARTING HAN-MODULAR SERIES 16B MODULES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHinged Frames (Size 16 B) DatasheetDatasheet+3
09140160371 - 09140160371

09140160371

Active
HARTING Technology Group

CONNECTOR ACCESSORY, 4 MOD, HINGED FRAME, HARTING HAN-MODULAR SERIES 16B MODULES

Deep-Dive with AI

DocumentsHinged Frames (Size 16 B) DatasheetDatasheet+3

Technical Specifications

Parameters and characteristics for this part

Specification09140160371
Frame TypeHinged, Retaining Frame
GenderNon-Gendered
Includes1 Frame, 4 Screws
MaterialZinc Die Cast
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size16 B

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 34.04
10$ 25.09
25$ 22.52
50$ 20.85
100$ 19.39
250$ 17.73
500$ 16.65
NewarkEach 1$ 23.36
5$ 23.01
10$ 22.41
25$ 21.89
50$ 20.52
100$ 19.83

Description

General part information

09140160 Series

The 09140160371 from Harting is a Han hinged frame plus for 4 modules A-D. It is approved by IEC 61984, EN 60664-1, UL standards.
