09140160301

Active

HARTING Technology Group

HAN MODULAR FRAME 16 HOOD 4 MODUL E, A-D ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN MODULAR FRAME 16 HOOD 4 MODUL E, A-D ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Material	Includes	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Size	Frame Type
HARTING Technology Group 09140160371	Zinc Die Cast	1 Frame 4 Screws	Non-Gendered	125 °C	-40 °C	16 B	Hinged Retaining Frame
HARTING Technology Group 09140160301			Female Male	125 °C	-40 °C	16 B	Fixed Frame
HARTING Technology Group 09140160313	Zinc Die Cast	1 Frame 4 Screws	Female	125 °C	-40 °C	16 B	Hinged Retaining Frame
HARTING Technology Group 09140160304	Zinc Die Cast	1 Frame 4 Screws	Female Male	125 °C	-40 °C	16 B	Hinged Retaining Frame
HARTING Technology Group 09140160316

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

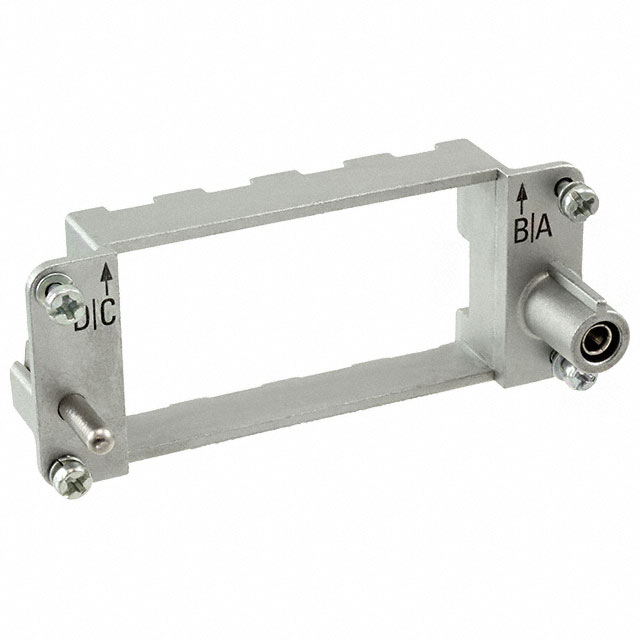

4 Module Female/Male Heavy Duty Fixed Frame Size 16B
