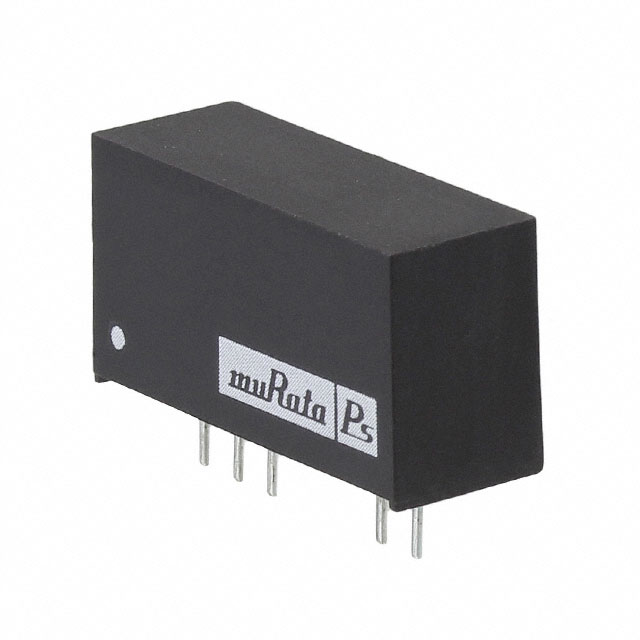

MEV1D2412SC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-12V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MEV1D2412SC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-12V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MEV1D2412SC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 42 mA |
| Current - Output (Max) [Max] | 42 mA |
| Efficiency | 88 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension [x] | 19.7 mm |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [y] | 6.2 mm |
| Size / Dimension [y] | 0.24 " |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.77 | |
| 5 | $ 6.74 | |||
| 10 | $ 6.69 | |||
| 25 | $ 6.61 | |||
| 50 | $ 6.45 | |||
| 100 | $ 6.13 | |||
| 250 | $ 5.73 | |||
| 500 | $ 5.35 | |||
| 1000 | $ 5.01 | |||
Description
General part information
MEV1D24 Series
Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 21.6V - 26.4V Input
Documents
Technical documentation and resources
