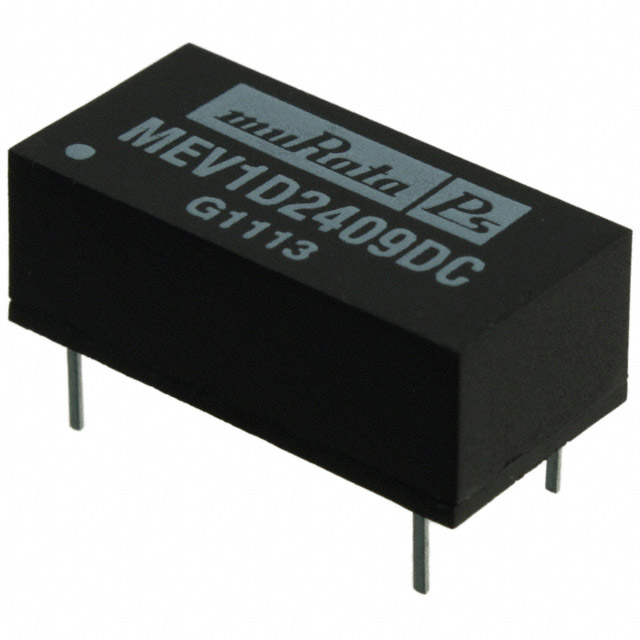

MEV1D2409DC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-9V 1W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-9V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Output 1	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Applications	Voltage - Input (Min) [Min]	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type
Murata Power Solutions Inc. MEV1D2412SC	3000 V	26.4 V	12 V	88 %	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	2	-12 V	42 mA	42 mA	ITE (Commercial)	21.6 V	7-SIP Module 5 Leads	Through Hole	85 °C	-40 °C	Isolated Module
Murata Power Solutions Inc. MEV1D2409DC	3000 V	26.4 V	9 V	86 %	19.7 mm	0.28 "	10 mm	0.78 "	0.39 "	7 mm	2	-9 V			ITE (Commercial)	21.6 V	14-DIP Module 6 Leads	Through Hole	85 °C	-40 °C	Isolated Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 9V -9V 56mA, 56mA 21.6V - 26.4V Input
