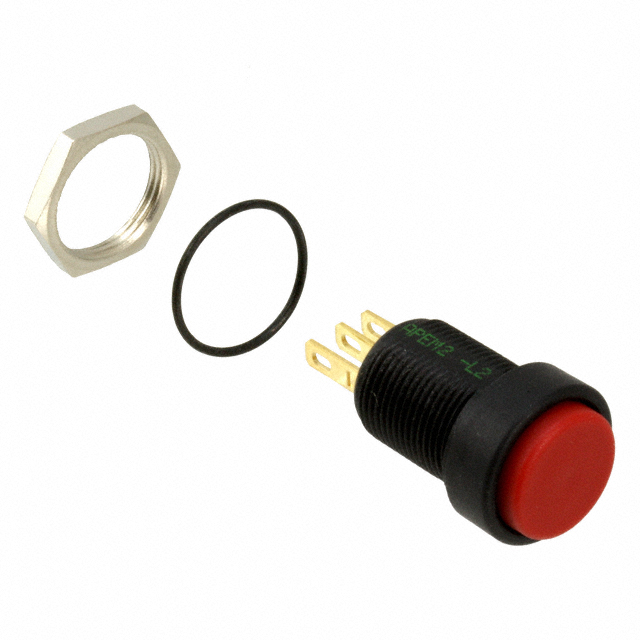

IMP7Z462234 - IMP7Z462234

IMP7Z462234

Active
APEM

PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
IMP7Z462234 - IMP7Z462234

IMP7Z462234

Active
APEM

PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationIMP7Z462234
Actuator MarkingNo Marking
Actuator TypeRound, Button
CircuitSPDT
Color - Actuator/CapRed
Current Rating (Amps)3 A
Electrical Life25000 Steps
FeaturesEpoxy Sealed Terminals
Ingress ProtectionIP67 - Dust Tight, Waterproof
Mechanical Life1000000 Cycles
Mounting TypePanel Mount, Front
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Panel Cutout Dimensions [diameter]13.6 mm
Switch FunctionOn-Mom
Termination StyleQuick Connect - 0.110" (2.8mm)
TypeStandard
Voltage Rating - DC28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 30.59
10$ 26.39
25$ 24.88
50$ 23.80
100$ 22.75
250$ 21.44
NewarkEach 1$ 48.68
50$ 44.26
100$ 36.84
500$ 29.54
1000$ 23.62
2500$ 22.69
5000$ 22.24
10000$ 21.76

Description

General part information

IMP7Z Series

Pushbutton Switch SPDT Standard Panel Mount, Front
