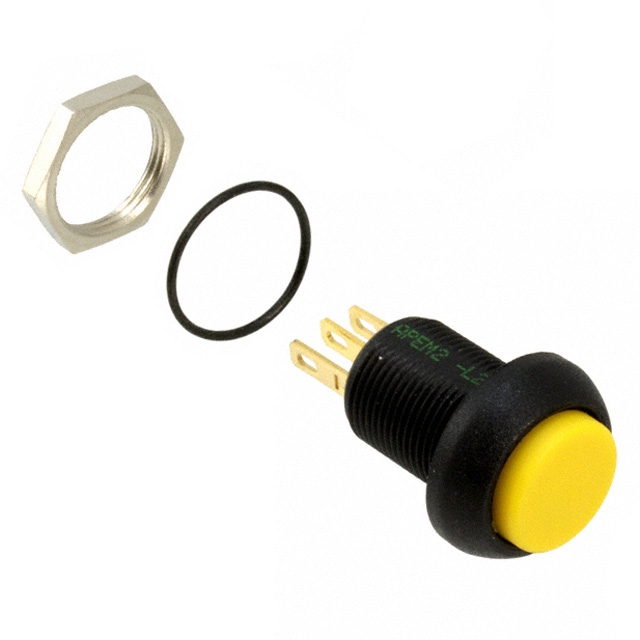

IMP7Z452

Active

APEM

SWITCH PUSHBUTTON SPDT 3A 28V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSHBUTTON SPDT 3A 28V

Technical Specifications

Parameters and characteristics for this part

Specification	IMP7Z452

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Yellow
Current Rating (Amps)	3 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Standard
Voltage Rating - DC	28 V

Part	Switch Function	Features	Termination Style	Circuit	Voltage Rating - DC	Color - Actuator/Cap	Type	Current Rating (Amps)	Mechanical Life	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Ingress Protection	Actuator Marking	Electrical Life	Actuator Type
APEM IMP7Z452	On-Mom	Epoxy Sealed Terminals	Quick Connect - 0.110" (2.8mm)	SPDT	28 V	Yellow	Standard	3 A	1000000 Cycles	13.6 mm	85 °C	-40 °C	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	25000 Steps	Button Round
APEM IMP7Z432104	On-Mom	Epoxy Sealed Terminals	Quick Connect - 0.110" (2.8mm)	SPDT	28 V	Green	Standard	3 A	1000000 Cycles	13.6 mm	85 °C	-40 °C	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	25000 Steps	Button Round
APEM IMP7Z422234	On-Mom	Epoxy Sealed Terminals	Quick Connect - 0.110" (2.8mm)	SPDT	28 V	Black	Standard	3 A	1000000 Cycles	13.6 mm	85 °C	-40 °C	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	25000 Steps	Button Round
APEM IMP7Z462234	On-Mom	Epoxy Sealed Terminals	Quick Connect - 0.110" (2.8mm)	SPDT	28 V	Red	Standard	3 A	1000000 Cycles	13.6 mm	85 °C	-40 °C	Panel Mount Front	IP67 - Dust Tight Waterproof	No Marking	25000 Steps	Button Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 24.07

General part information

Pushbutton Switch SPDT Standard Panel Mount, Front
