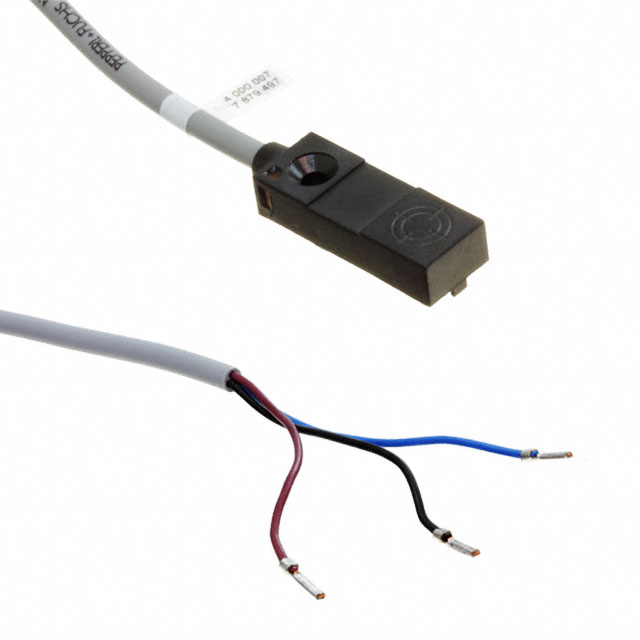

NBN4-F29-E2
ActivePEPPERL+FUCHS
INDUCTIVE SEN 4MM PNP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NBN4-F29-E2
ActivePEPPERL+FUCHS
INDUCTIVE SEN 4MM PNP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NBN4-F29-E2 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Polyphenylene Sulfide (PPS) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Module |
| Sensing Distance | 4 mm |
| Sensing Distance | 0.157 in |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 79.70 | |
| 5 | $ 67.22 | |||
| 10 | $ 62.47 | |||
| 25 | $ 56.71 | |||
| 50 | $ 52.71 | |||
| 100 | $ 48.99 | |||
Description
General part information
NBN4-F29 Series
INDUCTIVE SEN 4MM PNP
