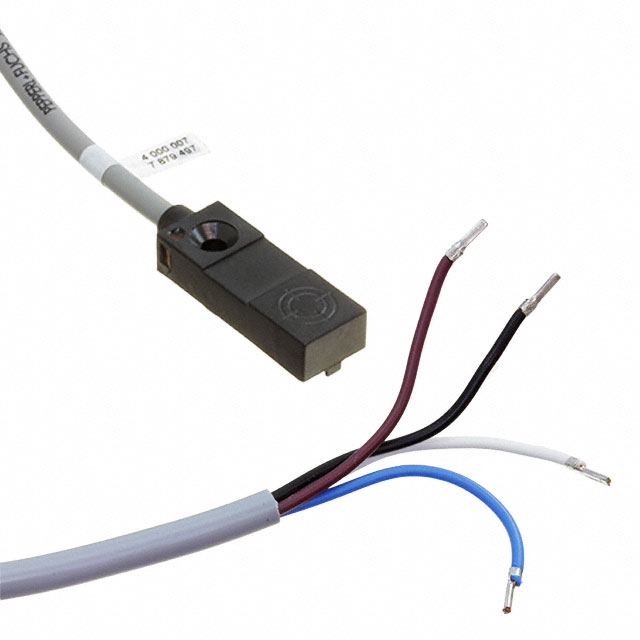

NBN4-F29-A0

Active

PEPPERL+FUCHS

INDUCTIVE SEN 4MM NPN

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 4MM NPN

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Termination Style	Shielding	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Indicator [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance	Sensing Distance	Package / Case	Sensor Type	Material - Body
PEPPERL+FUCHS NBN4-F29-A0	IP67	Cable	Unshielded	30 VDC	4.75 V	NPN-NC/NO 4-Wire	LED	70 °C	-25 °C	4 mm	0.157 in	Module	Inductive	Polyphenylene Sulfide (PPS)
PEPPERL+FUCHS NBN4-F29-E2	IP67	Cable	Unshielded	30 VDC	4.75 V	PNP-NO 3-Wire	LED	70 °C	-25 °C	4 mm	0.157 in	Module	Inductive	Polyphenylene Sulfide (PPS)
PEPPERL+FUCHS NBN4-F29-E0	IP67	Cable	Unshielded	30 VDC	4.75 V	NPN-NO 3-Wire	LED	70 °C	-25 °C	4 mm	0.157 in	Module	Inductive	Polyphenylene Sulfide (PPS)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 4MM NPN

Technical documentation and resources
