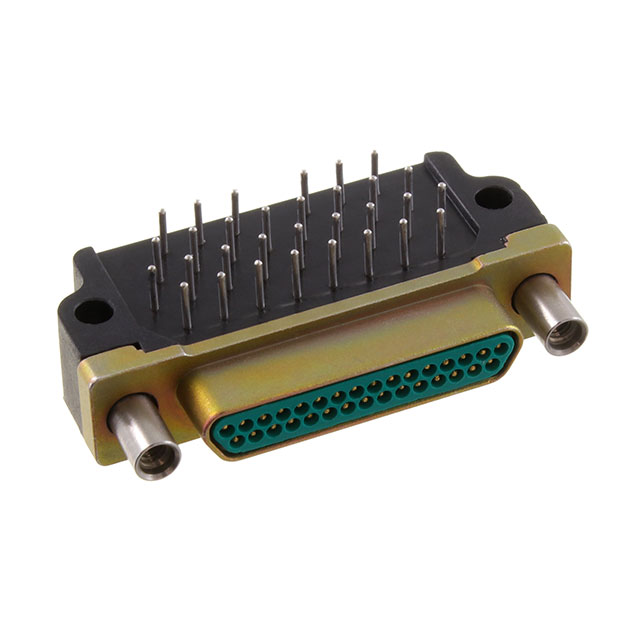

DCCM31PCBRPN
ActiveCinch Connectivity Solutions Trompeter
CONN MICRO-D PLUG 31POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DCCM31PCBRPN
ActiveCinch Connectivity Solutions Trompeter
CONN MICRO-D PLUG 31POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DCCM31PCBRPN |
|---|---|
| Backset Spacing | 3.3 mm |
| Backset Spacing | 0.13 in |
| Connector Style | Micro-D, D-Type |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Diallyl Phthalate (DAP), Glass Filled |
| Features | Shielded |
| Flange Feature | Female Screwlock, Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 31 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Aluminum Alloy, Electroless |
| Shell Size, Connector Layout [custom] | 0.043 |
| Shell Size, Connector Layout [custom] | 0.05 |
| Termination | Solder |
DCCM31 Series
| Part | Features | Contact Material | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Material Flammability Rating | Current Rating (Amps) | Contact Type | Connector Type | Number of Positions | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Type | 1st Connector | Length [x] | Length [x] | Color | 2nd Connector | Mounting Type | Backset Spacing | Backset Spacing | Flange Feature | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cinch Connectivity Solutions Trompeter | Shielded | Copper Alloy | 2 | 135 °C | -55 °C | Diallyl Phthalate (DAP) Glass Filled | UL94 V-0 | 3 A | Signal | Receptacle Female Sockets | 31 | D-Type Micro-D | 0.043 | 0.05 | Gold | Aluminum Alloy Yellow Chromate Plated Cadmium | 50 µin | 1.27 µm | |||||||||||
Cinch Connectivity Solutions Trompeter | 31 | Gold | 50 µin | 1.27 µm | D-Type Micro-D | Female Sockets Receptacle | 3 ft | 914.4 mm | Individual Multiple | Individual Wire Leads | |||||||||||||||||||
Cinch Connectivity Solutions Trompeter | 31 | Gold | 50 µin | 1.27 µm | D-Type Micro-D | Plug Male Pins | 3 ft | 914.4 mm | Individual Multiple | Individual Wire Leads | |||||||||||||||||||
Cinch Connectivity Solutions Trompeter | Shielded | Copper Alloy | 2 | 135 °C | -55 °C | Diallyl Phthalate (DAP) Glass Filled | UL94 V-0 | 3 A | Signal | Male Pins Plug | 31 | D-Type Micro-D | 0.043 | 0.05 | Gold | Aluminum Alloy Yellow Chromate Plated Cadmium | 50 µin | 1.27 µm | |||||||||||
Cinch Connectivity Solutions Trompeter | Shielded | Copper Alloy | 2 | 135 °C | -55 °C | Diallyl Phthalate (DAP) Glass Filled | UL94 V-0 | 3 A | Signal | Male Pins Plug | 31 | D-Type Micro-D | 0.043 | 0.05 | Gold | Aluminum Alloy Electroless Nickel Plated | 50 µin | 1.27 µm | Through Hole Right Angle | 3.3 mm | 0.13 in | Female Screwlock Mating Side | Solder | ||||||
Cinch Connectivity Solutions Trompeter | Shielded | Copper Alloy | 2 | 135 °C | -55 °C | Diallyl Phthalate (DAP) Glass Filled | UL94 V-0 | 3 A | Signal | Male Pins Plug | 31 | D-Type Micro-D | 0.043 | 0.05 | Gold | Aluminum Alloy Yellow Chromate Plated Cadmium | 50 µin | 1.27 µm | Through Hole Right Angle | 3.3 mm | 0.13 in | Female Screwlock Mating Side | Solder | ||||||
Cinch Connectivity Solutions Trompeter | Shielded | Copper Alloy | 2 | 135 °C | -55 °C | Diallyl Phthalate (DAP) Glass Filled | UL94 V-0 | 3 A | Signal | Receptacle Female Sockets | 31 | D-Type Micro-D | 0.043 | 0.05 | Gold | Aluminum Alloy Electroless Nickel Plated | 50 µin | 1.27 µm | Through Hole | Female Screwlock Mating Side | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 145.82 | |
Description
General part information
DCCM31 Series
31 Position D-Type, Micro-D Plug, Male Pins Connector
