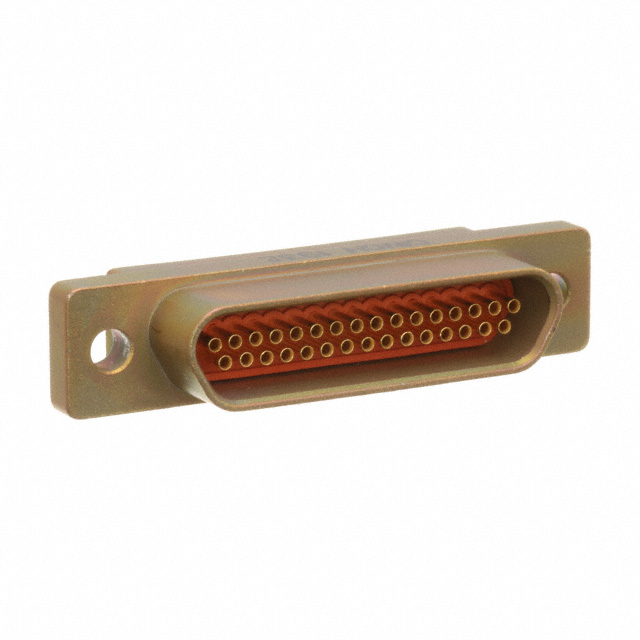

DCCM31SSB

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D RCPT 31POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DCCM31SSB

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D RCPT 31POS PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCCM31SSB

Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Diallyl Phthalate (DAP), Glass Filled
Features	Shielded
Material Flammability Rating	UL94 V-0
Number of Positions	31
Number of Rows	2
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Chromate Plated Cadmium, Aluminum Alloy
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05

DCCM31 Series

Part	Features	Contact Material	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Material Flammability Rating	Current Rating (Amps)	Contact Type	Connector Type	Number of Positions	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Type	1st Connector	Length [x]	Length [x]	Color	2nd Connector	Mounting Type	Backset Spacing	Backset Spacing	Flange Feature	Termination
Cinch Connectivity Solutions Trompeter DCCM31SSB	Shielded	Copper Alloy	2	135 °C	-55 °C	Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	3 A	Signal	Receptacle Female Sockets	31	D-Type Micro-D	0.043	0.05	Gold	Aluminum Alloy Yellow Chromate Plated Cadmium	50 µin	1.27 µm
Cinch Connectivity Solutions Trompeter DCCM31S6E5-36.0BN											31				Gold		50 µin	1.27 µm	D-Type Micro-D	Female Sockets Receptacle	3 ft	914.4 mm	Individual Multiple	Individual Wire Leads
Cinch Connectivity Solutions Trompeter DCCM31P6E5-36.0BN											31				Gold		50 µin	1.27 µm	D-Type Micro-D	Plug Male Pins	3 ft	914.4 mm	Individual Multiple	Individual Wire Leads
Cinch Connectivity Solutions Trompeter DCCM31PSB	Shielded	Copper Alloy	2	135 °C	-55 °C	Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	3 A	Signal	Male Pins Plug	31	D-Type Micro-D	0.043	0.05	Gold	Aluminum Alloy Yellow Chromate Plated Cadmium	50 µin	1.27 µm
Cinch Connectivity Solutions Trompeter DCCM31PCBRPN	Shielded	Copper Alloy	2	135 °C	-55 °C	Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	3 A	Signal	Male Pins Plug	31	D-Type Micro-D	0.043	0.05	Gold	Aluminum Alloy Electroless Nickel Plated	50 µin	1.27 µm							Through Hole Right Angle	3.3 mm	0.13 in	Female Screwlock Mating Side	Solder
Cinch Connectivity Solutions Trompeter DCCM31PCBRP	Shielded	Copper Alloy	2	135 °C	-55 °C	Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	3 A	Signal	Male Pins Plug	31	D-Type Micro-D	0.043	0.05	Gold	Aluminum Alloy Yellow Chromate Plated Cadmium	50 µin	1.27 µm							Through Hole Right Angle	3.3 mm	0.13 in	Female Screwlock Mating Side	Solder
Cinch Connectivity Solutions Trompeter DCCM31SBSPN	Shielded	Copper Alloy	2	135 °C	-55 °C	Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	3 A	Signal	Receptacle Female Sockets	31	D-Type Micro-D	0.043	0.05	Gold	Aluminum Alloy Electroless Nickel Plated	50 µin	1.27 µm							Through Hole			Female Screwlock Mating Side	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 156.13
		10	$ 121.91
		25	$ 111.10
		50	$ 103.82
		100	$ 97.23

Description

General part information

DCCM31 Series

31 Position D-Type, Micro-D Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

No documents available
