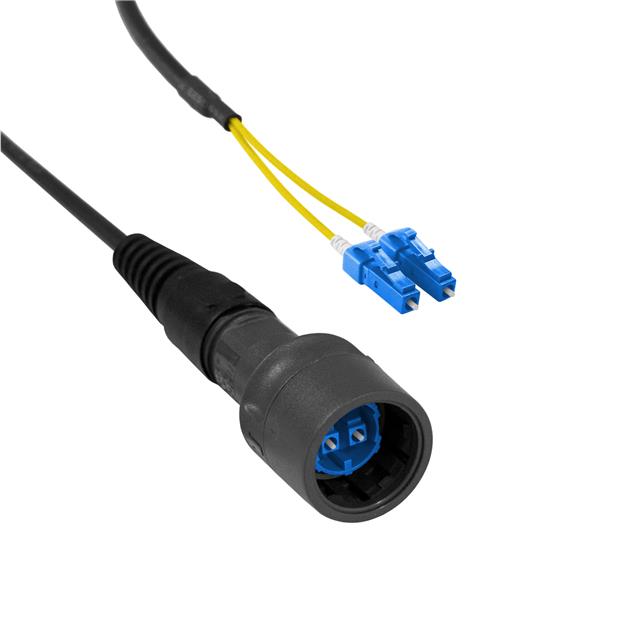

PXF6050CAF
ActiveBULGIN LIMITED
FIBRE CABLE, LC DUPLEX-LC DUPLEX, SM
Deep-Dive with AI
Search across all available documentation for this part.
PXF6050CAF
ActiveBULGIN LIMITED
FIBRE CABLE, LC DUPLEX-LC DUPLEX, SM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PXF6050CAF |
|---|---|
| 1st Connector | LC Duplex |
| 2nd Connector | LC Duplex |
| Bend Radius [radius] | 10 mm |
| Cable Diameter [diameter] | 2 mm |
| Cable Diameter [diameter] | 0.08 in |
| Cable Type | Buffered Fiber |
| Color - Cable | Yellow |
| Color - Connectors | Aqua |
| Features | IP66, IP68, IP69K, Low Smoke |
| Insertion Loss | 0.2 dB |
| Length - Overall | 328.1 ' |
| Length - Overall | 100 m |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Ratings | LSZH |
| Type | Singlemode, Duplex, OS1 |
PXF6050 Series
| Part | Cable Diameter [diameter] | Cable Diameter [diameter] | Ratings | 2nd Connector | Bend Radius [radius] | Features | Color - Connectors | Length - Overall | Length - Overall | Fiber Type | Type | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | 1st Connector | Color - Cable | Insertion Loss | Bend Radius | Length - Overall [x] | Length - Overall [x] | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | 2 mm | 0.08 in | LSZH | LC Duplex | 10 mm | IP66 IP68 IP69K Low Smoke | Aqua | 328.1 ' | 100 m | 50/125 | Duplex Multimode OM3 | 70 °C | -25 °C | Buffered Fiber | LC Duplex | ||||||
BULGIN LIMITED | 2 mm | 0.08 in | LSZH | LC Duplex | 10 mm | IP66 IP68 IP69K Low Smoke | Aqua | 328.1 ' | 100 m | Duplex OS1 Singlemode | 70 °C | -25 °C | Buffered Fiber | LC Duplex | Yellow | 0.2 dB | |||||
BULGIN LIMITED | 2 mm | 0.08 in | LC Duplex | IP66 IP68 IP69K Low Smoke | Aqua | 62.5/125 | Duplex Multimode OM1 | 70 °C | -25 °C | Buffered Fiber | LC Duplex | Orange | 30 mm | 15 m | 49.2 ' | Poly-Vinyl Chloride (PVC) | |||||
BULGIN LIMITED | 2 mm | 0.08 in | LSZH | LC Duplex | 10 mm | IP66 IP68 IP69K Low Smoke | Aqua | 50/125 | Duplex Multimode OM3 | 70 °C | -25 °C | Buffered Fiber | LC Duplex | 25 m | 82 ft | ||||||
BULGIN LIMITED | 2 mm | 0.08 in | LC Duplex | IP66 IP68 IP69K Low Smoke | Aqua | 16.4 ft | 5 m | 62.5/125 | Duplex Multimode OM1 | 70 °C | -25 °C | Buffered Fiber | LC Duplex | Orange | 30 mm | Poly-Vinyl Chloride (PVC) | |||||
BULGIN LIMITED | 2 mm | 0.08 in | LC Duplex | IP66 IP68 IP69K Low Smoke | Aqua | 62.5/125 | Duplex Multimode OM1 | 70 °C | -25 °C | Buffered Fiber | LC Duplex | Orange | 30 mm | 300 m | 984.3 ft | Poly-Vinyl Chloride (PVC) | |||||
BULGIN LIMITED | 2 mm | 0.08 in | LSZH | LC Duplex | 10 mm | IP66 IP68 IP69K Low Smoke | Aqua | 1476.4 ft | 450 m | Duplex OS1 Singlemode | 70 °C | -25 °C | Buffered Fiber | LC Duplex | Yellow | 0.2 dB | |||||
BULGIN LIMITED | 2 mm | 0.08 in | LC Duplex | IP66 IP68 IP69K Low Smoke | Aqua | 62.5/125 | Duplex Multimode OM1 | 70 °C | -25 °C | Buffered Fiber | LC Duplex | Orange | 30 mm | 10 m | 32.8 ft | Poly-Vinyl Chloride (PVC) | |||||
BULGIN LIMITED | 2 mm | 0.08 in | LSZH | LC Duplex | 10 mm | IP66 IP68 IP69K Low Smoke | Aqua | 50/125 | Duplex Multimode OM3 | 70 °C | -25 °C | Buffered Fiber | LC Duplex | 150 m | 492.1 ' | ||||||
BULGIN LIMITED | 2 mm | 0.08 in | LSZH | LC Duplex | 10 mm | IP66 IP68 IP69K Low Smoke | Aqua | Duplex OS1 Singlemode | 70 °C | -25 °C | Buffered Fiber | LC Duplex | Yellow | 0.2 dB | 300 m | 984.3 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PXF6050 Series
Cable Fiber Optic LC Duplex To LC Duplex 328.1' (100.0m)
