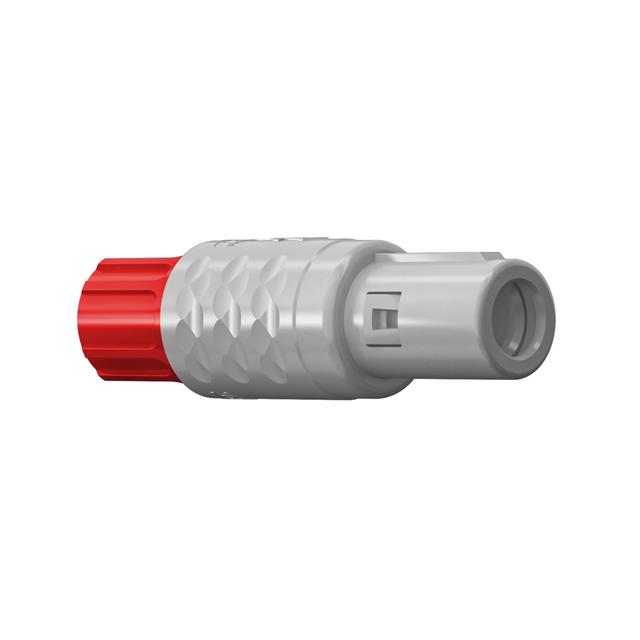

S11M07-P06MFD0-3920

Active

ODU

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S11M07-P06MFD0-3920

Active

ODU

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S11M07-P06MFD0-3920

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening [Max] [diameter]	0.154 in
Cable Opening [Max] [diameter]	3.9 mm
Cable Opening [Min] [diameter]	2.7 mm
Cable Opening [Min] [diameter]	0.106 in
Color	Gray, Red
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4.55 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	0
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded

S11M07-P Series

...

Part	Features	Mounting Type	Voltage Rating	Number of Positions	Contact Material	Primary Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Current Rating (Amps)	Color	Shielding	Ingress Protection	Material Flammability Rating	Insert Material	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Applications	Shell Size - Insert	Contact Finish - Mating	Fastening Type	Connector Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]
ODU S11M07-P09MCD0-5260	Backshell	Free Hanging (In-Line)	16 VDC	9	Brass	Plastic	0.157 in	0.205 in	4 mm	5.2 mm	6 A	Blue Gray	Unshielded	IP50	UL94 V-0	Polyetheretherketone (PEEK)	Polysulfone (PSU)	-50 °C	120 °C	Polysulfone (PSU)	Industrial Measurement Medical Testing Equipment	1	Gold	Push-Pull	Male Pins Plug
ODU S11M07-P06MFD0-3920	Backshell	Free Hanging (In-Line)		6	Brass	Plastic					4.55 A	Gray Red	Unshielded	IP50		Polyetheretherketone (PEEK)	Polysulfone (PSU)	-50 °C	120 °C	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	1	Gold	Push-Pull	Male Pins Plug	2.7 mm	0.154 in	3.9 mm	0.106 in
ODU S11M07-P07MFD0-5270	Backshell	Free Hanging (In-Line)		7	Brass	Plastic	0.157 in	0.205 in	4 mm	5.2 mm	4.55 A	Gray	Unshielded	IP50		Polyetheretherketone (PEEK)	Polysulfone (PSU)	-50 °C	120 °C	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	1	Gold	Push-Pull	Male Pins Plug
ODU S11M07-P08MFD0-3930	Backshell	Free Hanging (In-Line)		8	Brass	Plastic					3.85 A	Gray White	Unshielded	IP50		Polyetheretherketone (PEEK)	Polysulfone (PSU)	-50 °C	120 °C	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	1	Gold	Push-Pull	Male Pins Plug	2.7 mm	0.154 in	3.9 mm	0.106 in
ODU S11M07-P02MPH0-5280	Backshell	Free Hanging (In-Line)		2	Brass	Plastic	0.157 in	0.205 in	4 mm	5.2 mm	14 A		Unshielded	IP50		Polyetheretherketone (PEEK)	Polysulfone (PSU)	-50 °C	120 °C	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	1	Gold	Push-Pull	Male Pins Plug
ODU S11M07-P03LJN0-6560	Backshell	Free Hanging (In-Line)	230 V		Brass	Plastic					10 A	Blue Gray	Unshielded	IP50	UL94 V-0	Polyetheretherketone (PEEK)	Polysulfone (PSU)	-50 °C	120 °C	Polysulfone (PSU)	Industrial Measurement Medical Testing Equipment	1	Gold	Push-Pull	Male Pins Plug					0.209 in 0.256 in	5.3 mm 6.5 mm
ODU S11M07-P08MFG0-3920	Backshell	Free Hanging (In-Line)		8	Brass	Plastic						Gray Red	Unshielded	IP50		Polyetheretherketone (PEEK)	Polysulfone (PSU)	-50 °C	120 °C	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	1	Gold	Push-Pull	Male Pins Plug	2.7 mm	0.154 in	3.9 mm	0.106 in
ODU S11M07-P06MFG0-3920	Backshell	Free Hanging (In-Line)		6	Brass	Plastic					4.55 A	Gray Red	Unshielded	IP50		Polyetheretherketone (PEEK)	Polysulfone (PSU)	-50 °C	120 °C	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	1	Gold	Push-Pull	Male Pins Plug	2.7 mm	0.154 in	3.9 mm	0.106 in
ODU S11M07-P14MCC0-5220	Backshell	Free Hanging (In-Line)		14	Brass	Plastic	0.157 in	0.205 in	4 mm	5.2 mm	2.5 A	Gray Red	Unshielded	IP50		Polyetheretherketone (PEEK)	Polysulfone (PSU)	-50 °C	120 °C	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	1	Gold	Push-Pull	Male Pins Plug
ODU S11M07-P08MFG0-6550	Backshell	Free Hanging (In-Line)		8	Brass	Plastic					3.85 A	Gray Green	Unshielded	IP50		Polyetheretherketone (PEEK)	Polysulfone (PSU)	-50 °C	120 °C	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	1	Gold	Push-Pull	Male Pins Plug					0.209 in 0.256 in	5.3 mm 6.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.49
LCSC	Piece	1	$ 35.56
		200	$ 14.19
		500	$ 13.71
		1000	$ 13.48

Description

General part information

S11M07-P Series

6 Position Circular Connector Plug, Male Pins Solder Cup
