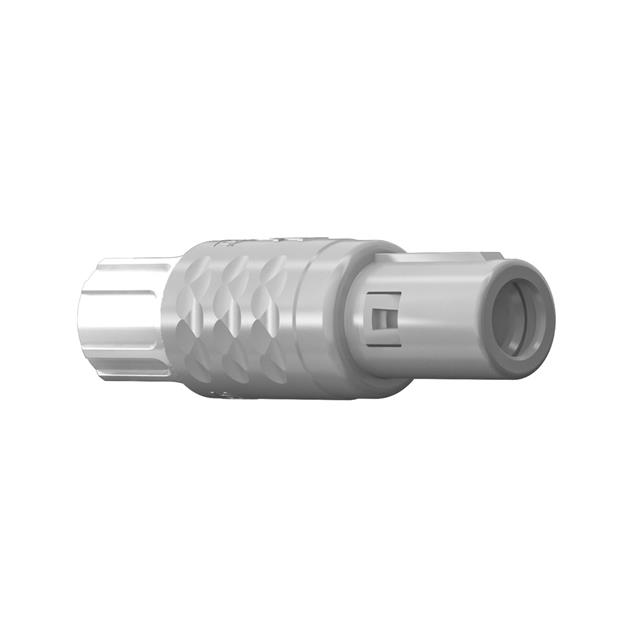

S11M07-P08MFD0-3930
ActiveODU
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S11M07-P08MFD0-3930 |
|---|---|
| Applications | Military, Medical, Industrial, Testing Equipment & Measurement |
| Backshell Material, Plating | Polysulfone (PSU) |
| Cable Opening [Max] [diameter] | 0.154 in |
| Cable Opening [Max] [diameter] | 3.9 mm |
| Cable Opening [Min] [diameter] | 2.7 mm |
| Cable Opening [Min] [diameter] | 0.106 in |
| Color | Gray, White |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 3.85 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -50 °C |
| Orientation | 0 |
| Primary Material | Plastic |
| Shell Material | Polysulfone (PSU) |
| Shell Size - Insert | 1 |
| Shielding | Unshielded |
S11M07-P Series
...
| Part | Features | Mounting Type | Voltage Rating | Orientation | Number of Positions | Contact Material | Primary Material | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Current Rating (Amps) | Color | Shielding | Ingress Protection | Material Flammability Rating | Insert Material | Backshell Material, Plating | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Applications | Shell Size - Insert | Contact Finish - Mating | Fastening Type | Connector Type | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Backshell | Free Hanging (In-Line) | 16 VDC | 0 | 9 | Brass | Plastic | 0.157 in | 0.205 in | 4 mm | 5.2 mm | 6 A | Blue Gray | Unshielded | IP50 | UL94 V-0 | Polyetheretherketone (PEEK) | Polysulfone (PSU) | -50 °C | 120 °C | Polysulfone (PSU) | Industrial Measurement Medical Testing Equipment | 1 | Gold | Push-Pull | Male Pins Plug | |||||||
Backshell | Free Hanging (In-Line) | 0 | 6 | Brass | Plastic | 4.55 A | Gray Red | Unshielded | IP50 | Polyetheretherketone (PEEK) | Polysulfone (PSU) | -50 °C | 120 °C | Polysulfone (PSU) | Industrial Medical Military Testing Equipment & Measurement | 1 | Gold | Push-Pull | Male Pins Plug | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | |||||||||
Backshell | Free Hanging (In-Line) | 0 | 7 | Brass | Plastic | 0.157 in | 0.205 in | 4 mm | 5.2 mm | 4.55 A | Gray | Unshielded | IP50 | Polyetheretherketone (PEEK) | Polysulfone (PSU) | -50 °C | 120 °C | Polysulfone (PSU) | Industrial Medical Military Testing Equipment & Measurement | 1 | Gold | Push-Pull | Male Pins Plug | |||||||||
Backshell | Free Hanging (In-Line) | 0 | 8 | Brass | Plastic | 3.85 A | Gray White | Unshielded | IP50 | Polyetheretherketone (PEEK) | Polysulfone (PSU) | -50 °C | 120 °C | Polysulfone (PSU) | Industrial Medical Military Testing Equipment & Measurement | 1 | Gold | Push-Pull | Male Pins Plug | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | |||||||||
Backshell | Free Hanging (In-Line) | 0 | 2 | Brass | Plastic | 0.157 in | 0.205 in | 4 mm | 5.2 mm | 14 A | Unshielded | IP50 | Polyetheretherketone (PEEK) | Polysulfone (PSU) | -50 °C | 120 °C | Polysulfone (PSU) | Industrial Medical Military Testing Equipment & Measurement | 1 | Gold | Push-Pull | Male Pins Plug | ||||||||||
Backshell | Free Hanging (In-Line) | 230 V | 0 | Brass | Plastic | 10 A | Blue Gray | Unshielded | IP50 | UL94 V-0 | Polyetheretherketone (PEEK) | Polysulfone (PSU) | -50 °C | 120 °C | Polysulfone (PSU) | Industrial Measurement Medical Testing Equipment | 1 | Gold | Push-Pull | Male Pins Plug | 0.209 in 0.256 in | 5.3 mm 6.5 mm | ||||||||||
Backshell | Free Hanging (In-Line) | 0 | 8 | Brass | Plastic | Gray Red | Unshielded | IP50 | Polyetheretherketone (PEEK) | Polysulfone (PSU) | -50 °C | 120 °C | Polysulfone (PSU) | Industrial Medical Military Testing Equipment & Measurement | 1 | Gold | Push-Pull | Male Pins Plug | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | ||||||||||
Backshell | Free Hanging (In-Line) | 0 | 6 | Brass | Plastic | 4.55 A | Gray Red | Unshielded | IP50 | Polyetheretherketone (PEEK) | Polysulfone (PSU) | -50 °C | 120 °C | Polysulfone (PSU) | Industrial Medical Military Testing Equipment & Measurement | 1 | Gold | Push-Pull | Male Pins Plug | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | |||||||||
Backshell | Free Hanging (In-Line) | 0 | 14 | Brass | Plastic | 0.157 in | 0.205 in | 4 mm | 5.2 mm | 2.5 A | Gray Red | Unshielded | IP50 | Polyetheretherketone (PEEK) | Polysulfone (PSU) | -50 °C | 120 °C | Polysulfone (PSU) | Industrial Medical Military Testing Equipment & Measurement | 1 | Gold | Push-Pull | Male Pins Plug | |||||||||
Backshell | Free Hanging (In-Line) | 0 | 8 | Brass | Plastic | 3.85 A | Gray Green | Unshielded | IP50 | Polyetheretherketone (PEEK) | Polysulfone (PSU) | -50 °C | 120 °C | Polysulfone (PSU) | Industrial Medical Military Testing Equipment & Measurement | 1 | Gold | Push-Pull | Male Pins Plug | 0.209 in 0.256 in | 5.3 mm 6.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
S11M07-P Series
8 Position Circular Connector Plug, Male Pins Solder Cup
