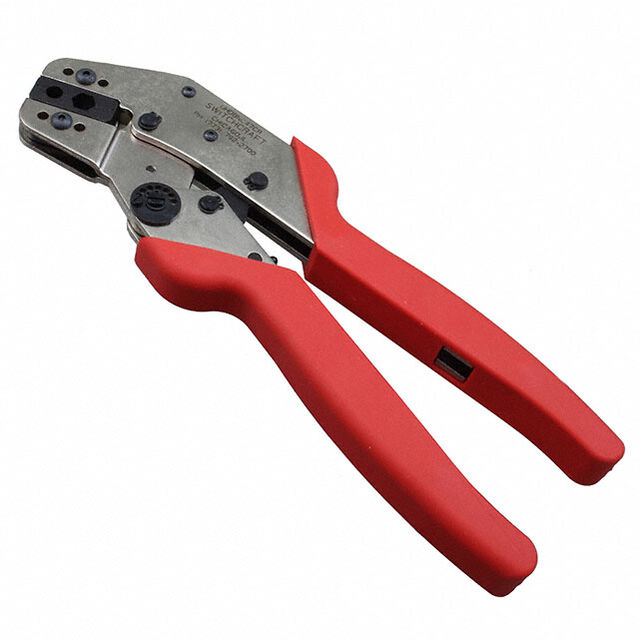

UHDBNC47CR

Active

Switchcraft Inc.

RF CONNECTORS / COAXIAL CONNECTORS CRIMP TOOL FOR UHDBNC47

Search across all available documentation for this part.

Active

Switchcraft Inc.

RF CONNECTORS / COAXIAL CONNECTORS CRIMP TOOL FOR UHDBNC47

Technical Specifications

Parameters and characteristics for this part

Specification	UHDBNC47CR

For Use With/Related Products	Coaxial, RF - BNC
Ratcheting	False
Tool Type	Hand Crimper
Wire Entry Location	Side Entry

RF Connectors / Coaxial Connectors Crimp Tool for UHDBNC47

Part	Body Finish	Fastening Type	Center Contact Plating	Connector Style	Includes	Frequency - Max [Max]	Number of Ports	Connector Type	Center Contact Material	Shield Termination	Body Material	Mounting Type	Housing Color	Cable Group	Contact Termination	Accessory Type	Style	Tool Type	For Use With/Related Products	Wire Entry Location
Switchcraft Inc. UHDBNC05	Nickel	Bayonet Lock	Gold	BNC UHD	1 Connector 1 Contact 1 Ferrule	24 GHz	1	Male Pin Plug	Brass	Crimp	Brass	Free Hanging (In-Line)	Silver	Belden 1505A	Crimp
Switchcraft Inc. UHDBNC47	Nickel	Bayonet Lock	Gold	BNC UHD	1 Connector 1 Contact 1 Ferrule	20 GHz	1	Male Pin Plug	Brass	Crimp	Brass	Free Hanging (In-Line)	Silver		Crimp
Switchcraft Inc. VMLPUHD																Dummy Plug Twin	1/4" Phone Jack
Switchcraft Inc. UHDBNC47CR																		Hand Crimper	Coaxial RF - BNC	Side Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 767.75
Sager	N/A	1	$ 998.37
		3	$ 985.73

General part information

RF Connectors / Coaxial Connectors Crimp Tool for UHDBNC47
