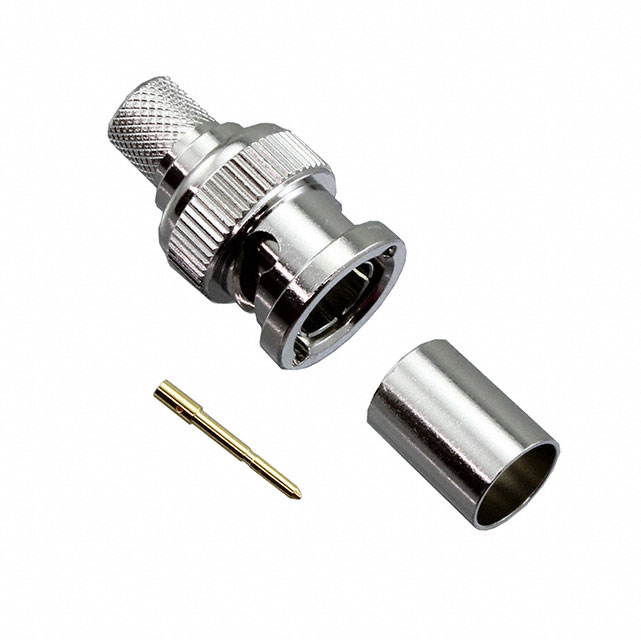

UHDBNC05

Active

Switchcraft Inc.

UHD BNC FOR 1505A CABLE

Search across all available documentation for this part.

Active

Switchcraft Inc.

UHD BNC FOR 1505A CABLE

Technical Specifications

Parameters and characteristics for this part

RF Connectors / Coaxial Connectors Crimp Tool for UHDBNC47

Part	Body Finish	Fastening Type	Center Contact Plating	Connector Style	Includes	Frequency - Max [Max]	Number of Ports	Connector Type	Center Contact Material	Shield Termination	Body Material	Mounting Type	Housing Color	Cable Group	Contact Termination	Accessory Type	Style	Tool Type	For Use With/Related Products	Wire Entry Location
Switchcraft Inc. UHDBNC05	Nickel	Bayonet Lock	Gold	BNC UHD	1 Connector 1 Contact 1 Ferrule	24 GHz	1	Male Pin Plug	Brass	Crimp	Brass	Free Hanging (In-Line)	Silver	Belden 1505A	Crimp
Switchcraft Inc. UHDBNC47	Nickel	Bayonet Lock	Gold	BNC UHD	1 Connector 1 Contact 1 Ferrule	20 GHz	1	Male Pin Plug	Brass	Crimp	Brass	Free Hanging (In-Line)	Silver		Crimp
Switchcraft Inc. VMLPUHD																Dummy Plug Twin	1/4" Phone Jack
Switchcraft Inc. UHDBNC47CR																		Hand Crimper	Coaxial RF - BNC	Side Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Connectors / Coaxial Connectors Crimp Tool for UHDBNC47
