09200320520

Active

HARTING Technology Group

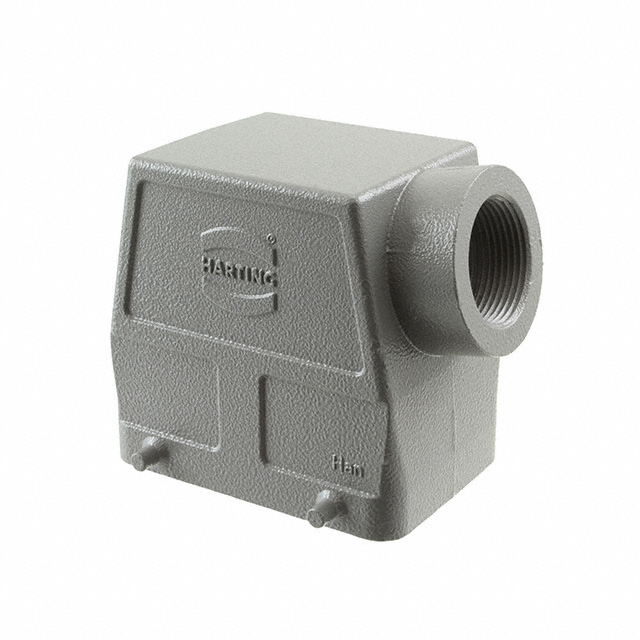

HEAVY DUTY CONNECTOR, PG21, HOOD, SIDE ENTRY, ALUMINUM BODY, 2 LEVER, 32A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09200320520

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PG21, HOOD, SIDE ENTRY, ALUMINUM BODY, 2 LEVER, 32A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09200320520

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	32 A
Size / Dimension [x]	82 mm
Size / Dimension [x]	3.228 in
Size / Dimension [y]	2.205 in
Size / Dimension [y]	56 mm
Size / Dimension [z]	3.11 "
Size / Dimension [z]	79 mm
Style	Side Entry
Thread Size	PG21

09200320 Series

Part	Size	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Housing Finish	Connector Type	Thread Size	Housing Material	Ingress Protection	Housing Color	Features
HARTING Technology Group 09200320530	32 A	125 °C	-40 °C	Locking Clip (2) on Hood	Side Entry	82 mm	2.205 in	56 mm	3.11 "	3.228 in	79 mm	Powder Coated	Hood	PG21	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09200320301	32 A	125 °C	-40 °C	Locking Clip (2) on Base Bottom	Bottom Entry		2.205 in 56 mm		1.126 in 28.6 mm	4.016 " 102 mm		Powder Coated	Base - Panel Mount		Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09200320430	32 A	125 °C	-40 °C	Locking Clip (2) on Hood	Top Entry	82 mm	2.205 in	56 mm	3.11 "	3.228 in	79 mm	Powder Coated	Hood	PG21	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09200320381	32 A	125 °C	-40 °C	Locking Clip (1) on Hood	Bottom Entry	102 mm	2.205 in	56 mm	1.118 in	4.016 "	28.4 mm	Powder Coated	Base - Panel Mount		Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09200320221	32 A	125 °C	-40 °C	Locking Clip (2) on Hood	Side Entry	106 mm	2.244 "	57 mm	3.22 in	4.173 "	81.8 mm	Powder Coated	Base - Box Mount	PG29	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Gray	Cover
HARTING Technology Group 09200320220	32 A	125 °C	-40 °C	Locking Clip (2) on Hood	Side Entry	106 mm	2.244 "	57 mm	3.22 in	4.173 "	81.8 mm	Powder Coated	Base - Box Mount	PG21	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Gray	Cover
HARTING Technology Group 09200320520	32 A	125 °C	-40 °C	Locking Clip (2) on Base Bottom	Side Entry	82 mm	2.205 in	56 mm	3.11 "	3.228 in	79 mm	Powder Coated	Hood	PG21	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.51
		10	$ 28.47
		25	$ 27.24
		50	$ 26.36
		100	$ 25.48
		250	$ 24.08
Newark	Each	1	$ 33.59
		10	$ 30.45
		25	$ 29.24
		50	$ 27.32
		100	$ 26.28
		250	$ 24.89

Description

General part information

09200320 Series

Hood Connector Side Entry PG21 32A IP65 - Dust Tight, Water Resistant
