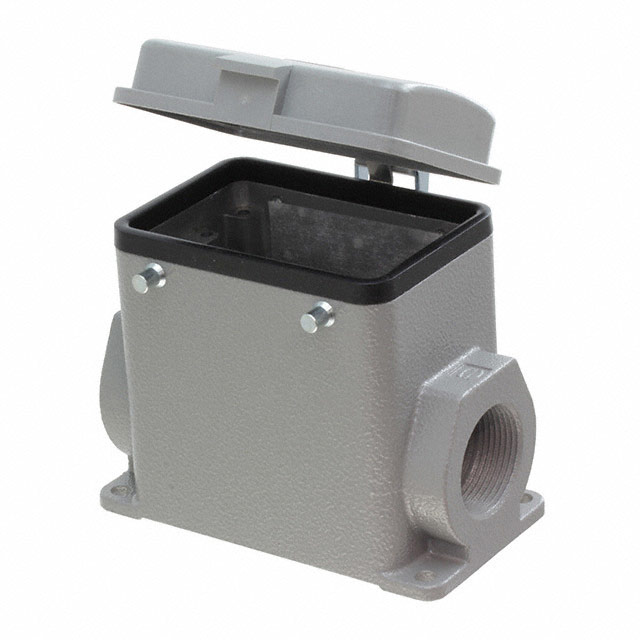

HAN A BASE SURFACE HC 4 PEGS THERMOPLAST ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09200320220

Active

HARTING Technology Group

HAN A BASE SURFACE HC 4 PEGS THERMOPLAST ROHS COMPLIANT: NA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09200320220

Connector Type	Base - Box Mount
Features	Cover
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	32 A
Size / Dimension [x]	106 mm
Size / Dimension [x]	4.173 "
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	3.22 in
Size / Dimension [z]	81.8 mm
Style	Side Entry
Thread Size	PG21

09200320 Series

Part	Size	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Housing Finish	Connector Type	Thread Size	Housing Material	Ingress Protection	Housing Color	Features
HARTING Technology Group 09200320530	32 A	125 °C	-40 °C	Locking Clip (2) on Hood	Side Entry	82 mm	2.205 in	56 mm	3.11 "	3.228 in	79 mm	Powder Coated	Hood	PG21	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09200320301	32 A	125 °C	-40 °C	Locking Clip (2) on Base Bottom	Bottom Entry		2.205 in 56 mm		1.126 in 28.6 mm	4.016 " 102 mm		Powder Coated	Base - Panel Mount		Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09200320430	32 A	125 °C	-40 °C	Locking Clip (2) on Hood	Top Entry	82 mm	2.205 in	56 mm	3.11 "	3.228 in	79 mm	Powder Coated	Hood	PG21	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09200320381	32 A	125 °C	-40 °C	Locking Clip (1) on Hood	Bottom Entry	102 mm	2.205 in	56 mm	1.118 in	4.016 "	28.4 mm	Powder Coated	Base - Panel Mount		Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09200320221	32 A	125 °C	-40 °C	Locking Clip (2) on Hood	Side Entry	106 mm	2.244 "	57 mm	3.22 in	4.173 "	81.8 mm	Powder Coated	Base - Box Mount	PG29	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Gray	Cover
HARTING Technology Group 09200320220	32 A	125 °C	-40 °C	Locking Clip (2) on Hood	Side Entry	106 mm	2.244 "	57 mm	3.22 in	4.173 "	81.8 mm	Powder Coated	Base - Box Mount	PG21	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Gray	Cover
HARTING Technology Group 09200320520	32 A	125 °C	-40 °C	Locking Clip (2) on Base Bottom	Side Entry	82 mm	2.205 in	56 mm	3.11 "	3.228 in	79 mm	Powder Coated	Hood	PG21	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Gray
