19410202701

Active

HARTING Technology Group

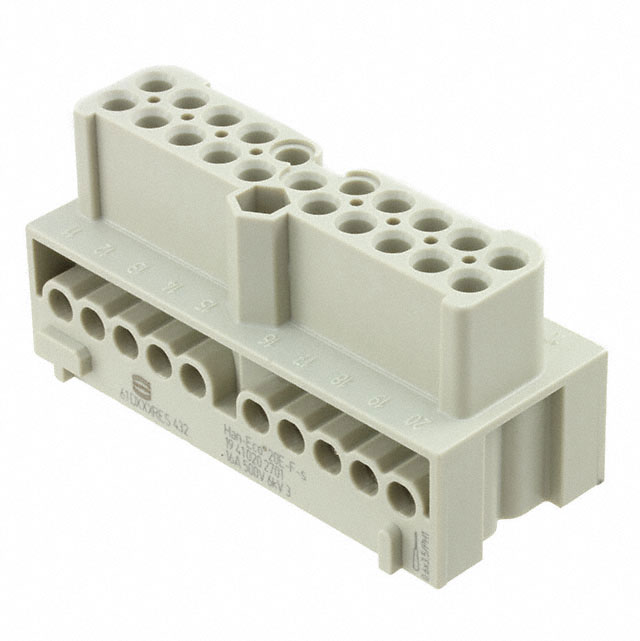

HAN-ECO MODULAR 20E+GND FEMALE SCREW TERMINAL MODULE - FOR HAN-ECO MODULAR 16B HOOD/HOUSING

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-ECO MODULAR 20E+GND FEMALE SCREW TERMINAL MODULE - FOR HAN-ECO MODULAR 16B HOOD/HOUSING

Technical Specifications

Parameters and characteristics for this part

Specification	19410202701

Color	Gray
Connector Type	Module
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	20+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Termination Style	Screw
Voltage Rating	500 V

Part	Housing Material	Color	Termination Style	Current Rating (Amps)	Voltage Rating	Material Flammability Rating	Gender	Number of Positions	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Size
HARTING Technology Group 19410202601	Polycarbonate (PC)	Gray	Screw	16 A	500 V	UL94 V-0	Male	20+Ground	Module	125 °C	-40 °C	16 B
HARTING Technology Group 19410202701	Polycarbonate (PC)	Gray	Screw	16 A	500 V	UL94 V-0	Female	20+Ground	Module	125 °C	-40 °C	16 B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Module Gray 20+Ground Position Screw
