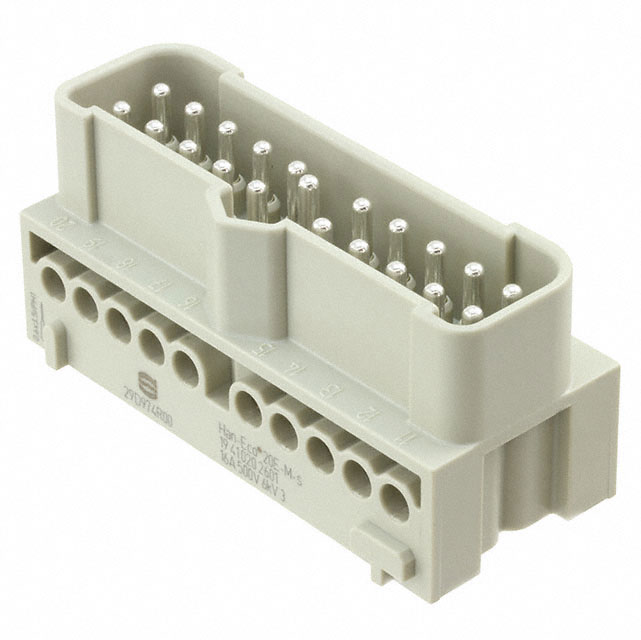

19410202601

Active

HARTING Technology Group

RECTANGULAR CONNECTOR,

Search across all available documentation for this part.

Active

HARTING Technology Group

RECTANGULAR CONNECTOR,

Technical Specifications

Parameters and characteristics for this part

Specification	19410202601

Color	Gray
Connector Type	Module
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	20+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Termination Style	Screw
Voltage Rating	500 V

Part	Housing Material	Color	Termination Style	Current Rating (Amps)	Voltage Rating	Material Flammability Rating	Gender	Number of Positions	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Size
HARTING Technology Group 19410202601	Polycarbonate (PC)	Gray	Screw	16 A	500 V	UL94 V-0	Male	20+Ground	Module	125 °C	-40 °C	16 B
HARTING Technology Group 19410202701	Polycarbonate (PC)	Gray	Screw	16 A	500 V	UL94 V-0	Female	20+Ground	Module	125 °C	-40 °C	16 B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Module Gray 20+Ground Position Screw
