RRA22H3BBBNN

Active

ZF Electronics

SWITCH ROCKER SPST 10A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH ROCKER SPST 10A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Illumination Voltage (Nominal)	Color - Actuator/Cap	Voltage Rating - AC	Actuator Type	Electrical Life	Actuator Marking	Termination Style	Illumination Type, Color	Current Rating (Amps)	Mounting Type	Mechanical Life	Circuit	Switch Function
ZF Electronics RRA22H3BBGLN	125 VAC	Green	125 V	Round - Illuminated	6000 Cycles	No Marking	Quick Connect - 0.187" (4.7mm)	Green Neon	10 A	Panel Mount Snap-In	100000 Cycles	SPST	On-Off
ZF Electronics RRA22H3BBALN	125 VAC	Amber	125 V	Round - Illuminated	6000 Cycles	No Marking	Quick Connect - 0.187" (4.7mm)	Amber Neon	10 A	Panel Mount Snap-In	100000 Cycles	SPST	On-Off
ZF Electronics RRA22H3BBRLN	125 VAC	Red	125 V	Round - Illuminated	6000 Cycles	No Marking	Quick Connect - 0.187" (4.7mm)	Neon Red	10 A	Panel Mount Snap-In	100000 Cycles	SPST	On-Off
ZF Electronics RRA22H3BBBNN		Black	125 V	Round	6000 Cycles	No Marking	Quick Connect - 0.187" (4.7mm)		10 A	Panel Mount Snap-In	100000 Cycles	SPST	On-Off
ZF Electronics RRA22H3BBRHN	12 VDC	Red	125 V	Round - Illuminated	6000 Cycles	No Marking	Quick Connect - 0.187" (4.7mm)	Incandescent Red	10 A	Panel Mount Snap-In	100000 Cycles	SPST	On-Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

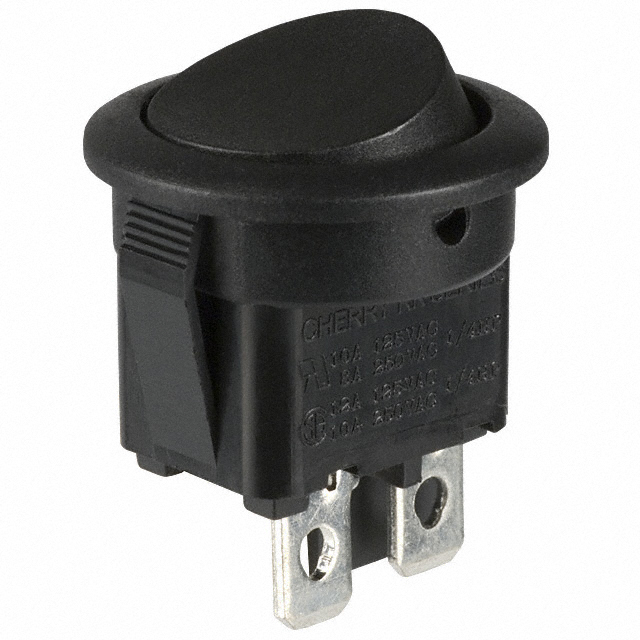

Rocker Switch SPST 10A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
