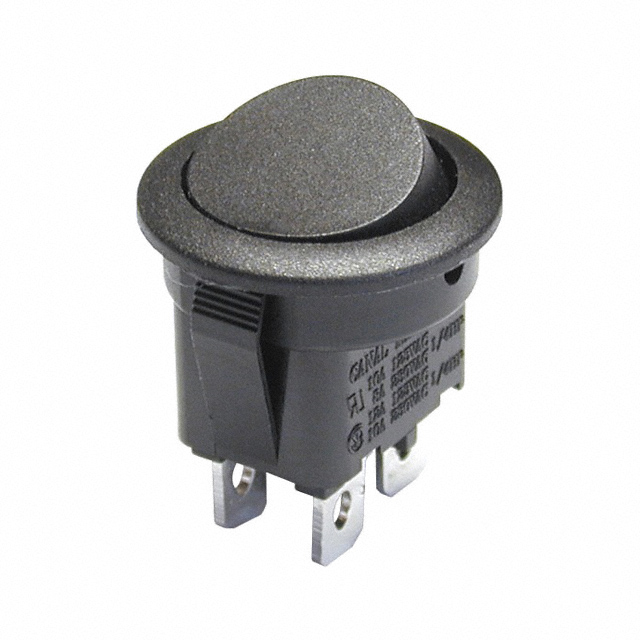

RRA22H3BBGLN
ActiveZF Electronics
SWITCH ROCKER SPST 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
RRA22H3BBGLN
ActiveZF Electronics
SWITCH ROCKER SPST 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RRA22H3BBGLN |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round - Illuminated |
| Circuit | SPST |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 10 A |
| Electrical Life | 6000 Cycles |
| Illumination Type, Color | Green, Neon |
| Illumination Voltage (Nominal) | 125 VAC |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
RRA22H3B Series
| Part | Illumination Voltage (Nominal) | Color - Actuator/Cap | Voltage Rating - AC | Actuator Type | Electrical Life | Actuator Marking | Termination Style | Illumination Type, Color | Current Rating (Amps) | Mounting Type | Mechanical Life | Circuit | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ZF Electronics | 125 VAC | Green | 125 V | Round - Illuminated | 6000 Cycles | No Marking | Quick Connect - 0.187" (4.7mm) | Green Neon | 10 A | Panel Mount Snap-In | 100000 Cycles | SPST | On-Off |
ZF Electronics | 125 VAC | Amber | 125 V | Round - Illuminated | 6000 Cycles | No Marking | Quick Connect - 0.187" (4.7mm) | Amber Neon | 10 A | Panel Mount Snap-In | 100000 Cycles | SPST | On-Off |
ZF Electronics | 125 VAC | Red | 125 V | Round - Illuminated | 6000 Cycles | No Marking | Quick Connect - 0.187" (4.7mm) | Neon Red | 10 A | Panel Mount Snap-In | 100000 Cycles | SPST | On-Off |
ZF Electronics | Black | 125 V | Round | 6000 Cycles | No Marking | Quick Connect - 0.187" (4.7mm) | 10 A | Panel Mount Snap-In | 100000 Cycles | SPST | On-Off | ||
ZF Electronics | 12 VDC | Red | 125 V | Round - Illuminated | 6000 Cycles | No Marking | Quick Connect - 0.187" (4.7mm) | Incandescent Red | 10 A | Panel Mount Snap-In | 100000 Cycles | SPST | On-Off |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1200 | $ 1.53 | |
Description
General part information
RRA22H3B Series
Rocker Switch SPST 10A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
