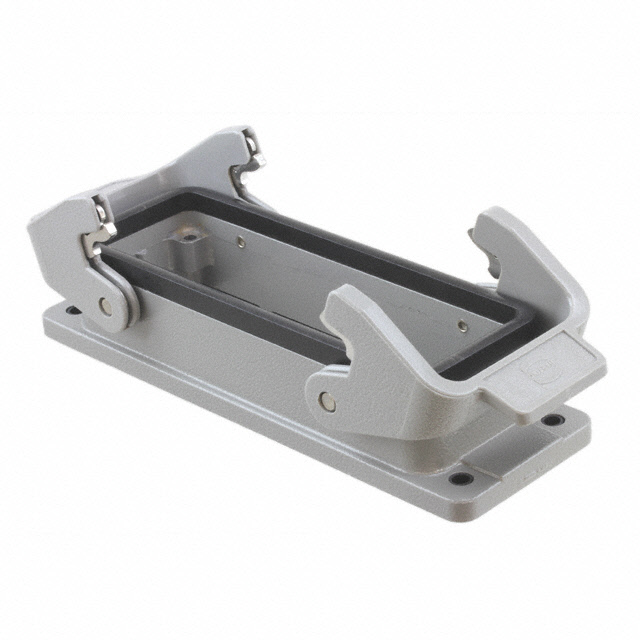

HEAVY DUTY CONNECTOR, LOW PROFILE, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 2 LEVER, 24B
Deep-Dive with AI
Search across all available documentation for this part.
09300241301
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, LOW PROFILE, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 2 LEVER, 24B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09300241301 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP67, IP65 |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 24 B |
| Size / Dimension [x] | 145 mm |
| Size / Dimension [x] | 5.709 in |
| Size / Dimension [y] | 48.4 mm |
| Size / Dimension [y] | 1.906 in |
| Size / Dimension [z] | 1.197 " |
| Size / Dimension [z] | 30.4 mm |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.64 | |
| 10 | $ 38.45 | |||
| 25 | $ 34.64 | |||
| 50 | $ 32.17 | |||
| 100 | $ 30.01 | |||
| 250 | $ 27.54 | |||
Description
General part information
09300241 Series
Base - Panel Mount Connector Bottom Entry 24B IP65/IP67 - Dust Tight, Water Resistant, Waterproof
