09300241260

Active

HARTING Technology Group

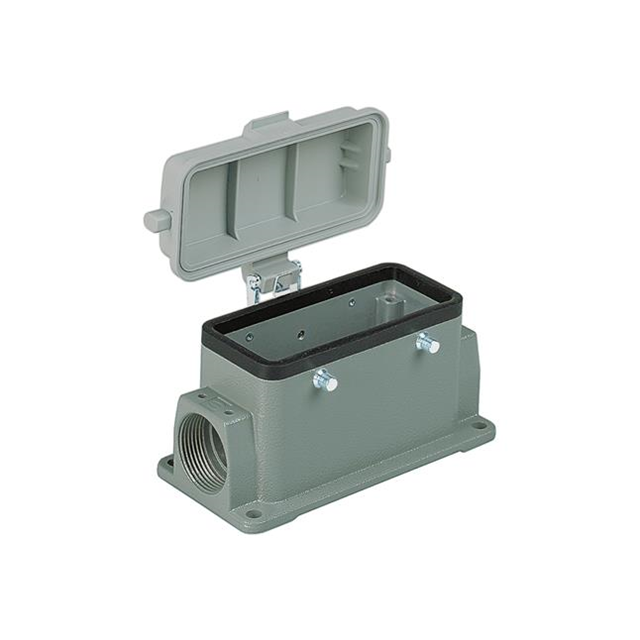

HAN B BASE SURFACE LC 4 PEGS THERMOPLAST ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09300241260

Active

HARTING Technology Group

HAN B BASE SURFACE LC 4 PEGS THERMOPLAST ROHS COMPLIANT: NA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09300241260

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	5.669 "
Size / Dimension [x]	144 mm
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	2.205 in
Size / Dimension [z]	56 mm
Style	Side Entry
Thread Size	PG21

09300241 Series

Part	Lock Location	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Thread Size	Style	Size	Connector Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Housing Finish	Size	Ingress Protection	Housing Color	Frame Type	Includes	Gender	Features
HARTING Technology Group 09300241298	Locking Clip (1) on Base Bottom	2.197 in 55.8 mm	2.244 " 57 mm	5.669 in 144 mm	PG21	Side Entry	6B	Base - Box Mount
HARTING Technology Group 09300241543	Locking Clip (1) on Base Bottom	62.5 mm	43 mm	120 mm	PG21	Side Entry	6B	Hood	2.461 in	4.724 "	1.693 in
HARTING Technology Group 09300241260	Locking Clip (2) on Hood	56 mm	57 mm	144 mm	PG21	Side Entry		Base - Box Mount	2.205 in	5.669 "	2.244 "	125 °C	-40 °C	Aluminum Die Cast	Powder Coated	24 B	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09300241233	Locking Clip (2) on Base Bottom	2.197 in 55.8 mm	2.244 " 57 mm	5.669 in 144 mm	PG21	Side Entry		Base - Box Mount								24 B
HARTING Technology Group 09300241230	Locking Clip (2) on Base Bottom	56 mm	57 mm	144 mm	PG21	Side Entry		Base - Box Mount	2.205 in	5.669 "	2.244 "	125 °C	-40 °C	Aluminum Die Cast	Powder Coated	24 B	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09300241301	Locking Clip (2) on Base Bottom	30.4 mm	48.4 mm	145 mm		Bottom Entry		Base - Panel Mount	1.197 "	5.709 in	1.906 in	125 °C	-40 °C	Aluminum Die Cast	Powder Coated	24 B	IP65 IP67	Gray
HARTING Technology Group 09300241670
HARTING Technology Group 09300241250	Locking Clip (1) on Base Bottom	2.197 in 55.8 mm	2.244 " 57 mm	5.669 in 144 mm	PG21	Side Entry		Base - Box Mount				125 °C	-40 °C	Aluminum Die Cast	Powder Coated	24 B	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09300241702																24 B			Fixed Frame	1 Frame 4 Screws	Non-Gendered
HARTING Technology Group 09300241270	Locking Clip (2) on Base Bottom	56 mm	57 mm	144 mm	PG21	Side Entry		Base - Box Mount	2.205 in	5.669 "	2.244 "	125 °C	-40 °C	Aluminum Die Cast	Powder Coated	24 B	IP65 - Dust Tight Water Resistant	Gray				Feed Through

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 86.89
		10	$ 65.50
		25	$ 59.31
		50	$ 55.29
		100	$ 51.76
Newark	Each	1	$ 69.62
		10	$ 63.13
		25	$ 60.60
		50	$ 56.63
		100	$ 54.47
		250	$ 51.58

Description

General part information

09300241 Series

Base - Box Mount Connector Side Entry PG21 24B IP65 - Dust Tight, Water Resistant
