OA172EC-22-1TBIP68A

Obsolete

Orion Fans

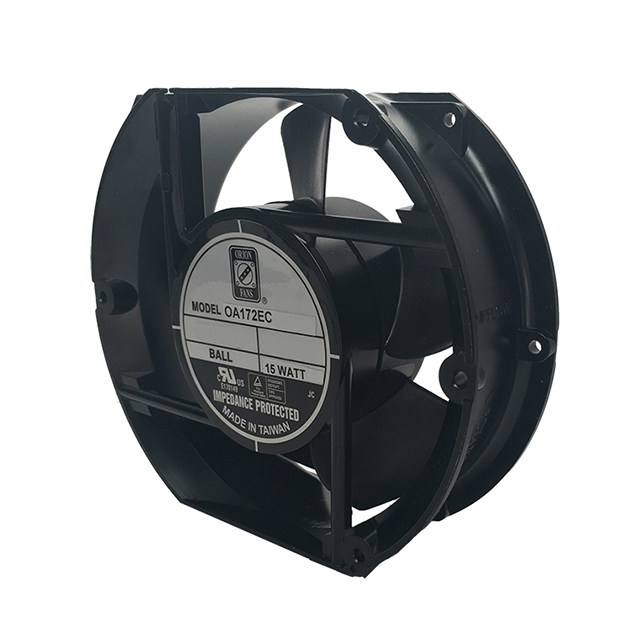

FAN 172X150X51MM 230VAC IP68ATEX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OA172EC-22-1TBIP68A

Obsolete

Orion Fans

FAN 172X150X51MM 230VAC IP68ATEX

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA172EC-22-1TBIP68A

Air Flow	220 CFM
Air Flow	6.16 m³/min
Approval Agency	UR, cURus, CE, ATEX
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP), Electronic Commutation (EC)
Ingress Protection	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	57 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	15 W
RPM	3000 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	0.62 in H2O
Static Pressure	154.4 Pa
Termination	2 Terminals
Voltage - Rated	230 VAC
Voltage Range [Max]	253 VAC
Voltage Range [Min]	207 VAC
Weight	1.5 lb
Weight	680.4 g
Width [y]	51 mm

OA172EC Series

Part	Voltage - Rated	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Width [y]	Material - Blade	Weight	Weight	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Air Flow	Air Flow	Noise	Material - Frame	RPM	Bearing Type	Termination	Static Pressure	Static Pressure	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Current Rating (Amps)	Ingress Protection	Operating Temperature [Max]	Width [x]	Size / Dimension [y]	Size / Dimension [custom]	Voltage - Rated [Min]	Voltage - Rated [Max]
Orion Fans OA172EC-22-1WB	230 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Wire Leads	0.62 in H2O	154.4 Pa	Tubeaxial	253 VAC	207 VAC	15 W
Orion Fans OA172EC-22-1TB	230 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Terminals	0.62 in H2O	154.4 Pa	Tubeaxial	253 VAC	207 VAC	15 W
Orion Fans OA172EC-11-1TB	115 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Terminals	0.62 in H2O	154.4 Pa	Tubeaxial	127 VAC	103 VAC	15 W	0.23 A
Orion Fans OA172EC-11-1TBIP68A	115 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	ATEX CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Terminals	0.62 in H2O	154.4 Pa	Tubeaxial	127 VAC	103 VAC	15 W	0.23 A	IP68 - Dust Tight Waterproof
Orion Fans OA172EC-22-1WBIP68A	230 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	ATEX CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Wire Leads	0.62 in H2O	154.4 Pa	Tubeaxial	253 VAC	207 VAC	15 W		IP68 - Dust Tight Waterproof
Orion Fans OA172EC-11-1WB	115 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Wire Leads	0.62 in H2O	154.4 Pa	Tubeaxial	127 VAC	103 VAC	15 W	0.23 A
Orion Fans OA172EC-22-1TBIP68A	230 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	ATEX CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Terminals	0.62 in H2O	154.4 Pa	Tubeaxial	253 VAC	207 VAC	15 W		IP68 - Dust Tight Waterproof
Orion Fans OA172EC-UR-1WB		50000 Hrs	-10 °C		-10 °C	70 °C	Dual Voltage Electronic Commutation (EC)		Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g			172 mm	CE cURus TUV UR	220 CFM	6.16 m³/min	55 dB	Aluminum	3000 RPM	Ball	2 Wire Leads			Tubeaxial	265 VAC	90 VAC	12.5 W			70 °C	51.6 mm	152 mm	Rectangular/Rounded	110 VAC	220 VAC
Orion Fans OA172EC-11-1WBIP68A	115 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	ATEX CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Wire Leads	0.62 in H2O	154.4 Pa	Tubeaxial	127 VAC	103 VAC	15 W	0.23 A	IP68 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

OA172EC Series

Fan Tubeaxial 230VAC Rectangular/Rounded - 172mm L x 150mm H Ball 220.0 CFM (6.16m³/min) 2 Terminals
