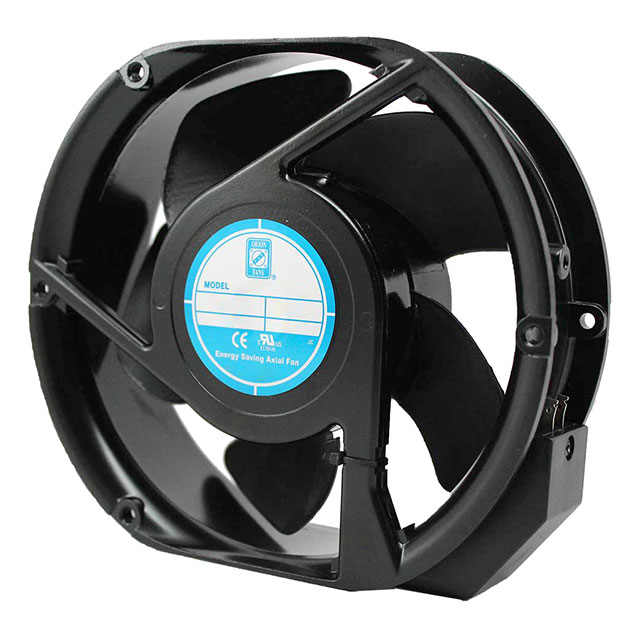

OA172EC-UR-1WB

Active

Orion Fans

AC AXIAL FAN, 110V / 220V, RECTANGULAR WITH ROUNDED ENDS, 172 MM, 51.6 MM, BALL BEARING, 220 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMiscellaneous EN Technical Data Sheet EN

OA172EC-UR-1WB

Active

Orion Fans

AC AXIAL FAN, 110V / 220V, RECTANGULAR WITH ROUNDED ENDS, 172 MM, 51.6 MM, BALL BEARING, 220 CFM

Deep-Dive with AI

DocumentsMiscellaneous EN Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA172EC-UR-1WB

Air Flow	220 CFM
Air Flow	6.16 m³/min
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Dual Voltage, Electronic Commutation (EC)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	55 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	12.5 W
RPM	3000 RPM
Size / Dimension [custom]	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [y]	152 mm
Termination	2 Wire Leads
Voltage - Rated [Max]	220 VAC
Voltage - Rated [Min]	110 VAC
Voltage Range [Max]	265 VAC
Voltage Range [Min]	90 VAC
Weight	1.5 lb
Weight	680.4 g
Width [x]	51.6 mm

OA172EC Series

Part	Voltage - Rated	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Width [y]	Material - Blade	Weight	Weight	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Air Flow	Air Flow	Noise	Material - Frame	RPM	Bearing Type	Termination	Static Pressure	Static Pressure	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Current Rating (Amps)	Ingress Protection	Operating Temperature [Max]	Width [x]	Size / Dimension [y]	Size / Dimension [custom]	Voltage - Rated [Min]	Voltage - Rated [Max]
Orion Fans OA172EC-22-1WB	230 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Wire Leads	0.62 in H2O	154.4 Pa	Tubeaxial	253 VAC	207 VAC	15 W
Orion Fans OA172EC-22-1TB	230 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Terminals	0.62 in H2O	154.4 Pa	Tubeaxial	253 VAC	207 VAC	15 W
Orion Fans OA172EC-11-1TB	115 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Terminals	0.62 in H2O	154.4 Pa	Tubeaxial	127 VAC	103 VAC	15 W	0.23 A
Orion Fans OA172EC-11-1TBIP68A	115 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	ATEX CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Terminals	0.62 in H2O	154.4 Pa	Tubeaxial	127 VAC	103 VAC	15 W	0.23 A	IP68 - Dust Tight Waterproof
Orion Fans OA172EC-22-1WBIP68A	230 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	ATEX CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Wire Leads	0.62 in H2O	154.4 Pa	Tubeaxial	253 VAC	207 VAC	15 W		IP68 - Dust Tight Waterproof
Orion Fans OA172EC-11-1WB	115 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Wire Leads	0.62 in H2O	154.4 Pa	Tubeaxial	127 VAC	103 VAC	15 W	0.23 A
Orion Fans OA172EC-22-1TBIP68A	230 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	ATEX CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Terminals	0.62 in H2O	154.4 Pa	Tubeaxial	253 VAC	207 VAC	15 W		IP68 - Dust Tight Waterproof
Orion Fans OA172EC-UR-1WB		50000 Hrs	-10 °C		-10 °C	70 °C	Dual Voltage Electronic Commutation (EC)		Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g			172 mm	CE cURus TUV UR	220 CFM	6.16 m³/min	55 dB	Aluminum	3000 RPM	Ball	2 Wire Leads			Tubeaxial	265 VAC	90 VAC	12.5 W			70 °C	51.6 mm	152 mm	Rectangular/Rounded	110 VAC	220 VAC
Orion Fans OA172EC-11-1WBIP68A	115 VAC	50000 Hrs	-20 °C	70 °C	-20 C	70 °C	Electronic Commutation (EC) Thermal Overload Protector (TOP)	51 mm	Polybutylene Terephthalate (PBT)	1.5 lb	680.4 g	Rectangular/Rounded	150 mm	172 mm	ATEX CE cURus UR	220 CFM	6.16 m³/min	57 dB	Aluminum	3000 RPM	Ball	2 Wire Leads	0.62 in H2O	154.4 Pa	Tubeaxial	127 VAC	103 VAC	15 W	0.23 A	IP68 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 69.07
		10	$ 61.58
		25	$ 58.83
		50	$ 56.83
		100	$ 54.89
Newark	Each	1	$ 68.27
		5	$ 64.56
		10	$ 60.84
		25	$ 58.12
		50	$ 56.15
		100	$ 54.24

Description

General part information

OA172EC Series

Fan Tubeaxial 110/220VAC Rectangular/Rounded - 172mm L x 152mm H Ball 220.0 CFM (6.16m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Miscellaneous EN

Datasheet

Technical Data Sheet EN

Datasheet
