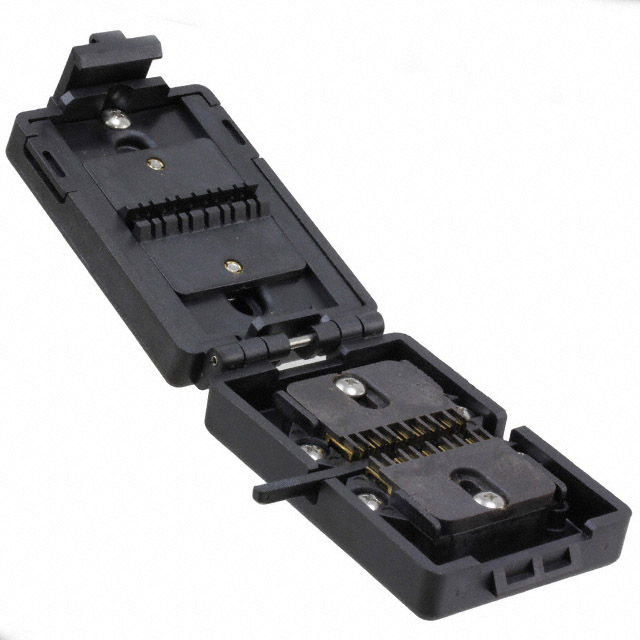

44-547-11E
ActiveAries Electronics
CONN SOCKET SOIC ZIF 44POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
44-547-11E
ActiveAries Electronics
CONN SOCKET SOIC ZIF 44POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 44-547-11E |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.51 µm |
| Contact Finish Thickness - Mating | 20 µin |
| Contact Finish Thickness - Post | 20 µin |
| Contact Finish Thickness - Post | 0.51 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Current Rating (Amps) | 1 A |
| Features | Closed Frame |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 44 Positions or Pins |
| Pitch - Post | 1.27 mm |
| Pitch - Post | 0.05 in |
| Termination | Solder |
| Termination Post Length | 0.15 in |
| Termination Post Length | 3.81 mm |
| Type | ZIF (ZIP), SOIC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 219.36 | |
| 10 | $ 203.27 | |||
| 25 | $ 195.96 | |||
| 50 | $ 194.50 | |||
Description
General part information
44-547 Series
44 (2 x 22) Pos SOIC, ZIF (ZIP) Socket Gold Through Hole
