TE6-1A-DC-1-AL

Active

Switch Components

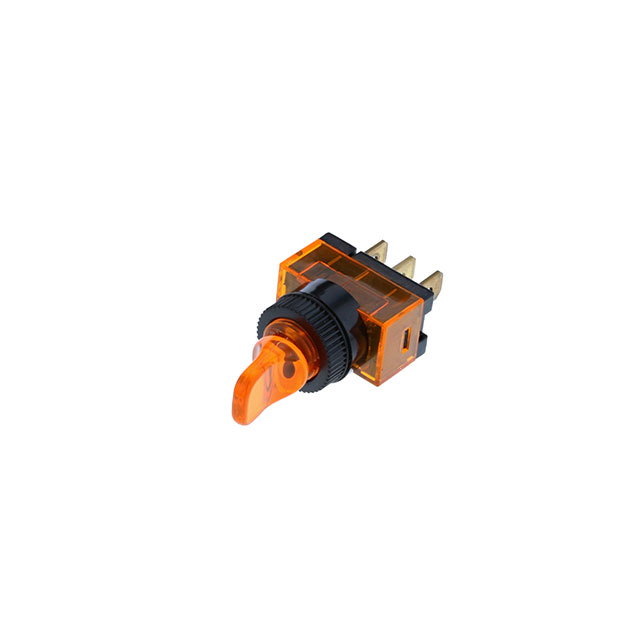

SWITCH: TOGGLE; POS: 2; SPST; ON-OFF; 20A/12VDC; LEADS: CONNECTORS

Search across all available documentation for this part.

Active

Switch Components

SWITCH: TOGGLE; POS: 2; SPST; ON-OFF; 20A/12VDC; LEADS: CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	TE6-1A-DC-1-AL

Actuator Length [x]	17 mm
Actuator Material	Polycarbonate (PC)
Actuator Type	Flatted
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPST
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Illuminated
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	12 VDC
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

Part	Termination Style	Electrical Life	Bushing Thread	Bushing Thread	Actuator Length [x]	Illumination Type, Color	Current Rating (Amps)	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Material	Illumination Voltage (Nominal)	Actuator Type	Illumination	Panel Cutout Dimensions [diameter]	Voltage Rating - DC
Switch Components TE6-1A-DC-1-RL	Quick Connect - 0.250" (6.3mm)	6000 Cycles	M12	1 x 1	17 mm	LED Red	20 A	On-Off	-25 °C	85 °C	SPST	Polycarbonate (PC)	12 VDC	Flatted	Illuminated	12.2 mm	12 V
Switch Components TE6-1A-DC-1-PB	Quick Connect - 0.250" (6.3mm)	6000 Cycles	M12	1 x 1	17 mm		20 A	On-Off	-25 °C	85 °C	SPST	Polycarbonate (PC)		Flatted	Non-Illuminated	12.2 mm	12 V
Switch Components TE6-1A-DC-1-AL	Quick Connect - 0.250" (6.3mm)	6000 Cycles	M12	1 x 1	17 mm	Amber LED	20 A	On-Off	-25 °C	85 °C	SPST	Polycarbonate (PC)	12 VDC	Flatted	Illuminated	12.2 mm	12 V
Switch Components TE6-1A-DC-1-GL	Quick Connect - 0.250" (6.3mm)	6000 Cycles	M12	1 x 1	17 mm	Green LED	20 A	On-Off	-25 °C	85 °C	SPST	Polycarbonate (PC)	12 VDC	Flatted	Illuminated	12.2 mm	12 V
Switch Components TE6-1A-DC-1-UL	Quick Connect - 0.250" (6.3mm)	6000 Cycles	M12	1 x 1	17 mm	Blue LED	20 A	On-Off	-25 °C	85 °C	SPST	Polycarbonate (PC)	12 VDC	Flatted	Illuminated	12.2 mm	12 V
