TE6-1A-DC-1-GL

Active

Switch Components

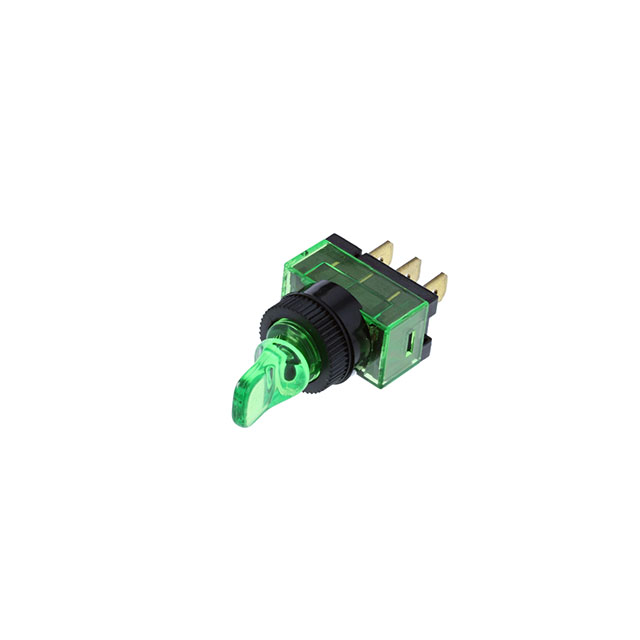

SWITCH TOGGLE SPST 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPST 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TE6-1A-DC-1-GL

Actuator Length [x]	17 mm
Actuator Material	Polycarbonate (PC)
Actuator Type	Flatted
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPST
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Illuminated
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	12 VDC
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

Part	Termination Style	Electrical Life	Bushing Thread	Bushing Thread	Actuator Length [x]	Illumination Type, Color	Current Rating (Amps)	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Material	Illumination Voltage (Nominal)	Actuator Type	Illumination	Panel Cutout Dimensions [diameter]	Voltage Rating - DC
Switch Components TE6-1A-DC-1-RL	Quick Connect - 0.250" (6.3mm)	6000 Cycles	M12	1 x 1	17 mm	LED Red	20 A	On-Off	-25 °C	85 °C	SPST	Polycarbonate (PC)	12 VDC	Flatted	Illuminated	12.2 mm	12 V
Switch Components TE6-1A-DC-1-PB	Quick Connect - 0.250" (6.3mm)	6000 Cycles	M12	1 x 1	17 mm		20 A	On-Off	-25 °C	85 °C	SPST	Polycarbonate (PC)		Flatted	Non-Illuminated	12.2 mm	12 V
Switch Components TE6-1A-DC-1-AL	Quick Connect - 0.250" (6.3mm)	6000 Cycles	M12	1 x 1	17 mm	Amber LED	20 A	On-Off	-25 °C	85 °C	SPST	Polycarbonate (PC)	12 VDC	Flatted	Illuminated	12.2 mm	12 V
Switch Components TE6-1A-DC-1-GL	Quick Connect - 0.250" (6.3mm)	6000 Cycles	M12	1 x 1	17 mm	Green LED	20 A	On-Off	-25 °C	85 °C	SPST	Polycarbonate (PC)	12 VDC	Flatted	Illuminated	12.2 mm	12 V
Switch Components TE6-1A-DC-1-UL	Quick Connect - 0.250" (6.3mm)	6000 Cycles	M12	1 x 1	17 mm	Blue LED	20 A	On-Off	-25 °C	85 °C	SPST	Polycarbonate (PC)	12 VDC	Flatted	Illuminated	12.2 mm	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.64

General part information

Toggle Switch SPST Panel Mount
