Technical Specifications
Parameters and characteristics for this part
| Specification | BH600-5.8 |
|---|---|
| Battery Cell Size | 16 mm |
| Battery Cell Size | Coin |
| Battery Series | V80H, 625, F5 iButton® |
| Battery Type, Function | Holder, Coin Cell |
| Height Above Board | 11.68 mm |
| Height Above Board | 0.46 in |
| Number of Cells | 1 |
| Operating Temperature [Max] | 180 °C |
| Operating Temperature [Min] | -55 °C |
| Style | Holder (Open) |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.57 | |
| 10 | $ 1.31 | |||
| 50 | $ 1.15 | |||
| 100 | $ 1.09 | |||
| 250 | $ 1.01 | |||
| 300 | $ 1.13 | |||
| 500 | $ 0.95 | |||
| 1000 | $ 0.90 | |||
| 2500 | $ 0.84 | |||
| 5000 | $ 0.79 | |||
Description
General part information
BH600 Series

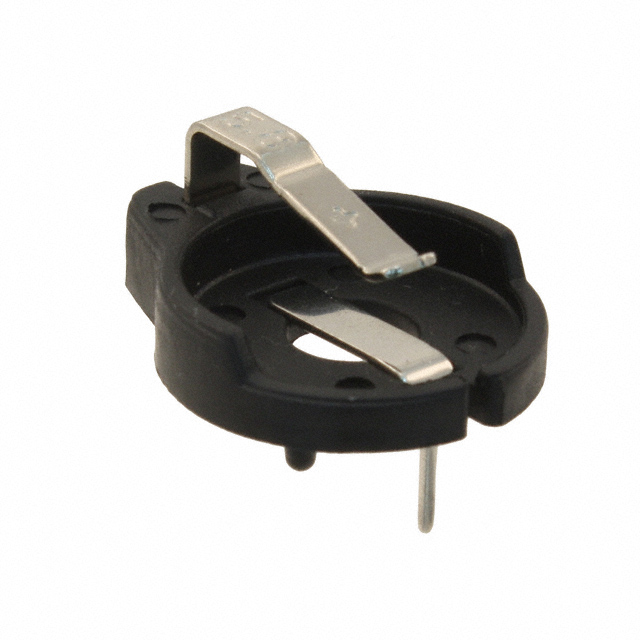

Battery Holder (Open) Coin, 16.0mm 1 Cell PC Pin
Documents
Technical documentation and resources
