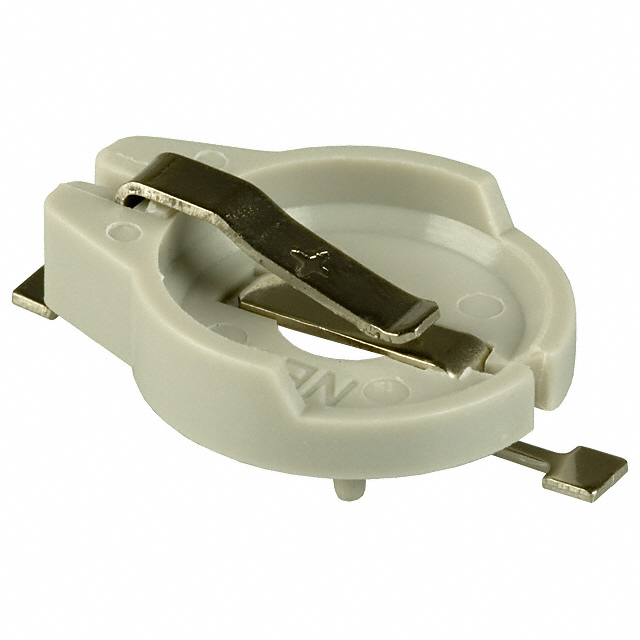

BH600SM

Obsolete

MPD (Memory Protection Devices)

BATTERY HOLDER COIN 16MM SMD

Search across all available documentation for this part.

Obsolete

MPD (Memory Protection Devices)

BATTERY HOLDER COIN 16MM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Cells	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Battery Series	Battery Series	Battery Cell Size	Battery Cell Size	Style	Height Above Board	Height Above Board	Mounting Type	Battery Type, Function
MPD (Memory Protection Devices) BH600SM-G	1	SMD (SMT) Tab	-40 °C	260 ░C	1620 1632	F3 iButton®	16 mm	Coin	Holder (Open)	8.38 mm	0.33 in	PCB Surface Mount	Coin Cell Holder
MPD (Memory Protection Devices) BH600SM	1	SMD (SMT) Tab	-40 °C	260 ░C		1620 1632	16 mm	Coin	Holder (Open)			PCB Surface Mount	Coin Cell Holder
MPD (Memory Protection Devices) BH600-5.8	1	PC Pin	-55 °C	180 °C		625 F5 iButton® V80H	16 mm	Coin	Holder (Open)	11.68 mm	0.46 in		Coin Cell Holder
MPD (Memory Protection Devices) BH600-5.8-G	1	PC Pin	-55 °C	180 °C		625 F5 iButton® V80H	16 mm	Coin	Holder (Open)	12 mm	0.472 in		Coin Cell Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Battery Holder (Open) Coin, 16.0mm 1 Cell SMD (SMT) Tab
