Technical Specifications
Parameters and characteristics for this part

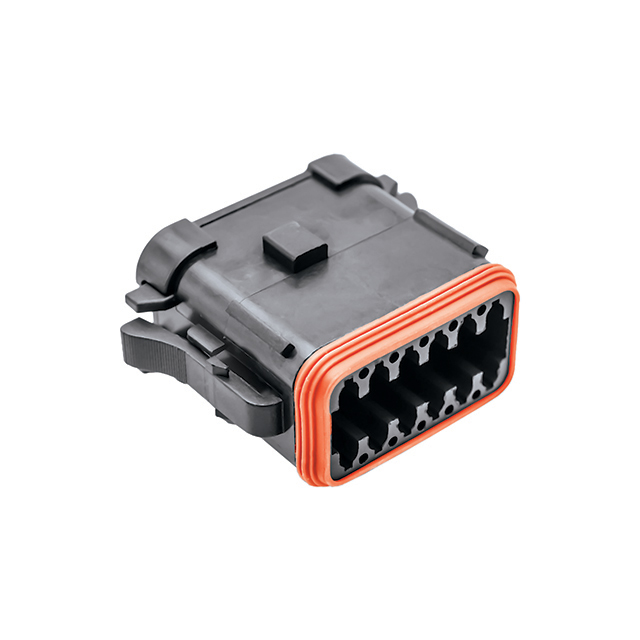

| Specification | AT06-12SA-ECBLK |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Cap (Cover) |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
AT06-12SA Series
| Part | Mounting Type | Connector Type | Features | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Type | Note | Insulation Material | Contact Termination | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Free Hanging (In-Line) | Plug | Sealed | Latch Lock | -55 °C | 125 °C | 2 | Female Socket | Contacts Not Included | Thermoplastic | Crimp | Black | 12 |
Amphenol Sine Systems Corp | Free Hanging (In-Line) | Plug | Cap (Cover) | Latch Lock | -55 °C | 125 °C | 2 | Female Socket | Contacts Not Included | Thermoplastic | Crimp | Gray | 12 |
Amphenol Sine Systems Corp | Free Hanging (In-Line) | Plug | Sealed | Latch Lock | -55 °C | 125 °C | 2 | Female Socket | Contacts Not Included | Thermoplastic | Crimp | Black | |
Amphenol Sine Systems Corp | Free Hanging (In-Line) | Plug | Cap (Cover) Sealed Strain Relief | Latch Lock | -55 °C | 125 °C | 2 | Female Socket | Contacts Not Included | Thermoplastic | Crimp | Gray | 12 |
Amphenol Sine Systems Corp | Free Hanging (In-Line) | Plug | Sealed | Latch Lock | -55 °C | 125 °C | 2 | Female Socket | Contacts Not Included | Polyamide (PA66) Nylon 6/6 Glass Filled | Crimp | Gray | 12 |
Amphenol Sine Systems Corp | Free Hanging (In-Line) | Plug | Sealed | Latch Lock | -55 °C | 125 °C | 2 | Female Socket | Contacts Not Included | Thermoplastic | Crimp | Gray | 12 |
Amphenol Sine Systems Corp | Free Hanging (In-Line) | Plug | Cap (Cover) | Latch Lock | -55 °C | 125 °C | 2 | Female Socket | Contacts Not Included | Thermoplastic | Crimp | Black | 12 |
Amphenol Sine Systems Corp | Free Hanging (In-Line) | Plug | Latch Lock | -55 °C | 125 °C | 2 | Female Socket | Contacts Not Included | Thermoplastic | Crimp | Gray | 12 | |
Amphenol Sine Systems Corp | Free Hanging (In-Line) | Plug | Sealed | Latch Lock | -55 °C | 125 °C | 2 | Female Socket | Contacts Not Included | Thermoplastic | Crimp | Gray | 12 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.40 | |
| 10 | $ 2.18 | |||
| 25 | $ 2.06 | |||
| 50 | $ 2.01 | |||
| 100 | $ 1.92 | |||
| 420 | $ 1.69 | |||
Description
General part information
AT06-12SA Series
12 Rectangular Connectors - Housings Plug Black
