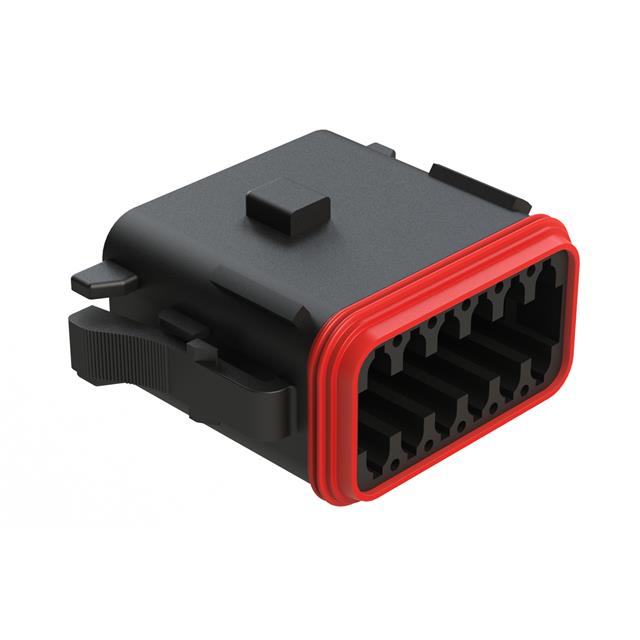

AT06-12SA-RDBLK

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 12POS 14-20AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AT Series

AT06-12SA-RDBLK

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 12POS 14-20AWG

Deep-Dive with AI

DocumentsDatasheet AT Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT06-12SA-RDBLK

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT06-12SA Series

Part	Mounting Type	Connector Type	Features	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Type	Note	Insulation Material	Contact Termination	Color	Number of Positions
Amphenol Sine Systems Corp AT06-12SA-RDBLK	Free Hanging (In-Line)	Plug	Sealed	Latch Lock	-55 °C	125 °C	2	Female Socket	Contacts Not Included	Thermoplastic	Crimp	Black	12
Amphenol Sine Systems Corp AT06-12SA-EC01	Free Hanging (In-Line)	Plug	Cap (Cover)	Latch Lock	-55 °C	125 °C	2	Female Socket	Contacts Not Included	Thermoplastic	Crimp	Gray	12
Amphenol Sine Systems Corp AT06-12SA-BLK	Free Hanging (In-Line)	Plug	Sealed	Latch Lock	-55 °C	125 °C	2	Female Socket	Contacts Not Included	Thermoplastic	Crimp	Black
Amphenol Sine Systems Corp AT06-12SA-SR2GY	Free Hanging (In-Line)	Plug	Cap (Cover) Sealed Strain Relief	Latch Lock	-55 °C	125 °C	2	Female Socket	Contacts Not Included	Thermoplastic	Crimp	Gray	12
Amphenol Sine Systems Corp AT06-12SA-OMGRY	Free Hanging (In-Line)	Plug	Sealed	Latch Lock	-55 °C	125 °C	2	Female Socket	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	Crimp	Gray	12
Amphenol Sine Systems Corp AT06-12SA-RD01	Free Hanging (In-Line)	Plug	Sealed	Latch Lock	-55 °C	125 °C	2	Female Socket	Contacts Not Included	Thermoplastic	Crimp	Gray	12
Amphenol Sine Systems Corp AT06-12SA-ECBLK	Free Hanging (In-Line)	Plug	Cap (Cover)	Latch Lock	-55 °C	125 °C	2	Female Socket	Contacts Not Included	Thermoplastic	Crimp	Black	12
Amphenol Sine Systems Corp AT06-12SA-MM01	Free Hanging (In-Line)	Plug		Latch Lock	-55 °C	125 °C	2	Female Socket	Contacts Not Included	Thermoplastic	Crimp	Gray	12
Amphenol Sine Systems Corp AT06-12SA	Free Hanging (In-Line)	Plug	Sealed	Latch Lock	-55 °C	125 °C	2	Female Socket	Contacts Not Included	Thermoplastic	Crimp	Gray	12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.57
		10	$ 4.15
		25	$ 3.93
		50	$ 3.84
		100	$ 3.66
		420	$ 3.20
		840	$ 2.83
		1260	$ 2.65
		2520	$ 2.47

Description

General part information

AT06-12SA Series

12 Rectangular Connectors - Housings Plug Black

Documents

Technical documentation and resources

Datasheet

AT Series

Datasheet
