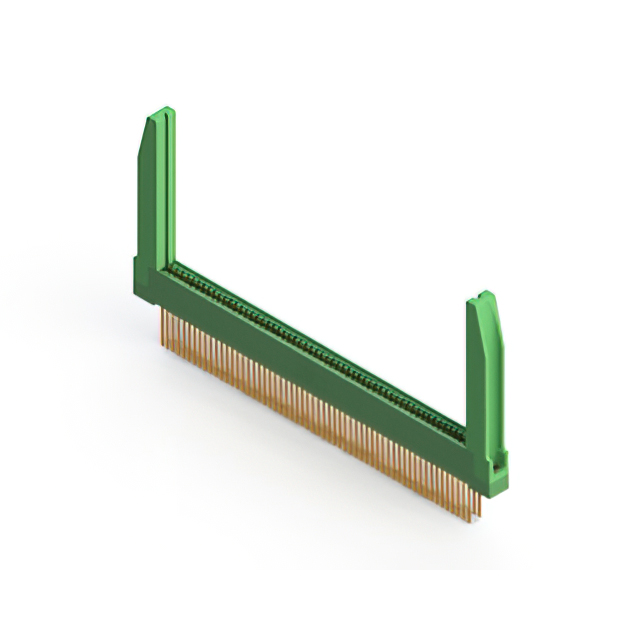

345-116-544-278
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 116 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-116-544-278
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 116 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-116-544-278 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 116 |
| Number of Positions/Bay/Row [custom] | 58 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
345-116 Series
...
| Part | Card Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Material | Mounting Type | Number of Positions/Bay/Row [custom] | Features | Number of Positions | Flange Feature | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Pitch [x] | Pitch [x] | Material - Insulation | Termination Rows | Read Out | Contact Finish | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Dual Edge | Female | 10 Áin | 0.25 Ám | Wire Wrap | Copper Alloy | Through Hole | 58 | Card Guides | 116 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | 2 | Dual | Gold | 2 | -40 °C | 105 ░C | ||||
EDAC Inc. | Non Specified - Dual Edge | Female | 10 Áin | 0.25 Ám | Wire Wrap | Copper Alloy | Through Hole | 58 | 116 | Floating Bobbin Top Mount Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | 2 | Dual | Gold | 2 | -40 °C | 105 ░C | 2.95 mm | 0.116 in | |||
EDAC Inc. | Non Specified - Dual Edge | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Through Hole | 58 | 116 | Side Mount Opening Unthreaded | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | 2 | Dual | Gold | 2 | -40 °C | 105 ░C | 3.25 mm | 0.128 in | |||
EDAC Inc. | Non Specified - Dual Edge | Female | 10 Áin | 0.25 Ám | Wire Wrap | Copper Alloy | Through Hole | 58 | Card Guides | 116 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | 2 | Dual | Gold | 2 | -40 °C | 105 ░C | ||||
EDAC Inc. | Non Specified - Dual Edge | Female | 10 Áin | 0.25 Ám | Wire Wrap | Copper Alloy | Through Hole | 58 | 116 | 4-40 Threaded Insert Top Mount Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | 2 | Dual | Gold | 2 | -40 °C | 105 ░C | |||||
EDAC Inc. | Non Specified - Dual Edge | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Through Hole | 58 | Card Guides | 116 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | 2 | Dual | Gold | 2 | -40 °C | 105 ░C | ||||
EDAC Inc. | Non Specified - Dual Edge | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Through Hole | 58 | 116 | Floating Bobbin Flush Mount | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | 2 | Dual | Gold | 2 | -40 °C | 105 ░C | 2.95 mm | 0.116 in | |||
EDAC Inc. | Non Specified - Dual Edge | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Through Hole | 58 | 116 | Top Mount Opening Unthreaded | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | 2 | Dual | Gold | 2 | -40 °C | 105 ░C | 3.96 mm | 0.156 in | |||
EDAC Inc. | Non Specified - Dual Edge | Female | 10 Áin | 0.25 Ám | Solder | Copper Alloy | Board Edge Straddle Mount | 58 | Card Extender | 116 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | 2 | Dual | Gold | 2 | -40 °C | 105 ░C | 3.25 mm | 0.128 in | |||
EDAC Inc. | Non Specified - Dual Edge | Female | 10 Áin | 0.25 Ám | Wire Wrap | Copper Alloy | Through Hole Right Angle | 58 | 116 | Side Mount Opening Unthreaded | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 2.54 mm | 0.1 in | Polyester Thermoplastic | 2 | Dual | Gold | 2 | -40 °C | 105 ░C | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-116 Series
116 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
