345-116-560-802

Active

EDAC Inc.

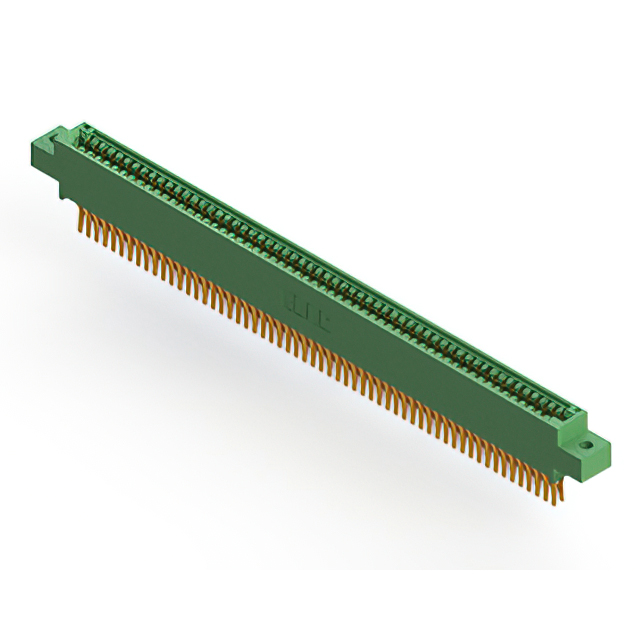

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 116 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

345-116-560-802

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 116 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-116-560-802

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	116
Number of Positions/Bay/Row [custom]	58
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

345-116 Series

...

Part	Card Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Material	Mounting Type	Number of Positions/Bay/Row [custom]	Features	Number of Positions	Flange Feature	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Pitch [x]	Pitch [x]	Material - Insulation	Termination Rows	Read Out	Contact Finish	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 345-116-544-288	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Wire Wrap	Copper Alloy	Through Hole	58	Card Guides	116	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2.54 mm	0.1 in	Polyester Thermoplastic	2	Dual	Gold	2	-40 °C	105 ░C
EDAC Inc. 345-116-541-503	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Wire Wrap	Copper Alloy	Through Hole	58		116	Floating Bobbin Top Mount Opening	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2.54 mm	0.1 in	Polyester Thermoplastic	2	Dual	Gold	2	-40 °C	105 ░C	2.95 mm	0.116 in
EDAC Inc. 345-116-523-512	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Solder	Copper Alloy	Through Hole	58		116	Side Mount Opening Unthreaded	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2.54 mm	0.1 in	Polyester Thermoplastic	2	Dual	Gold	2	-40 °C	105 ░C			3.25 mm	0.128 in
EDAC Inc. 345-116-544-278	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Wire Wrap	Copper Alloy	Through Hole	58	Card Guides	116	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2.54 mm	0.1 in	Polyester Thermoplastic	2	Dual	Gold	2	-40 °C	105 ░C
EDAC Inc. 345-116-544-508	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Wire Wrap	Copper Alloy	Through Hole	58		116	4-40 Threaded Insert Top Mount Opening	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2.54 mm	0.1 in	Polyester Thermoplastic	2	Dual	Gold	2	-40 °C	105 ░C
EDAC Inc. 345-116-521-258	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Solder	Copper Alloy	Through Hole	58	Card Guides	116	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2.54 mm	0.1 in	Polyester Thermoplastic	2	Dual	Gold	2	-40 °C	105 ░C
EDAC Inc. 345-116-521-203	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Solder	Copper Alloy	Through Hole	58		116	Floating Bobbin Flush Mount	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2.54 mm	0.1 in	Polyester Thermoplastic	2	Dual	Gold	2	-40 °C	105 ░C	2.95 mm	0.116 in
EDAC Inc. 345-116-525-804	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Solder	Copper Alloy	Through Hole	58		116	Top Mount Opening Unthreaded	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2.54 mm	0.1 in	Polyester Thermoplastic	2	Dual	Gold	2	-40 °C	105 ░C	3.96 mm	0.156 in
EDAC Inc. 345-116-560-802	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Solder	Copper Alloy	Board Edge Straddle Mount	58	Card Extender	116		Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2.54 mm	0.1 in	Polyester Thermoplastic	2	Dual	Gold	2	-40 °C	105 ░C			3.25 mm	0.128 in
EDAC Inc. 345-116-558-812	Non Specified - Dual Edge	Female	10 Áin	0.25 Ám	Wire Wrap	Copper Alloy	Through Hole Right Angle	58		116	Side Mount Opening Unthreaded	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2.54 mm	0.1 in	Polyester Thermoplastic	2	Dual	Gold	2	-40 °C	105 ░C			3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.10
Newark	Each	1	$ 17.17
		100	$ 12.27
		250	$ 10.41
		500	$ 9.28
		1000	$ 7.29

Description

General part information

345-116 Series

116 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
