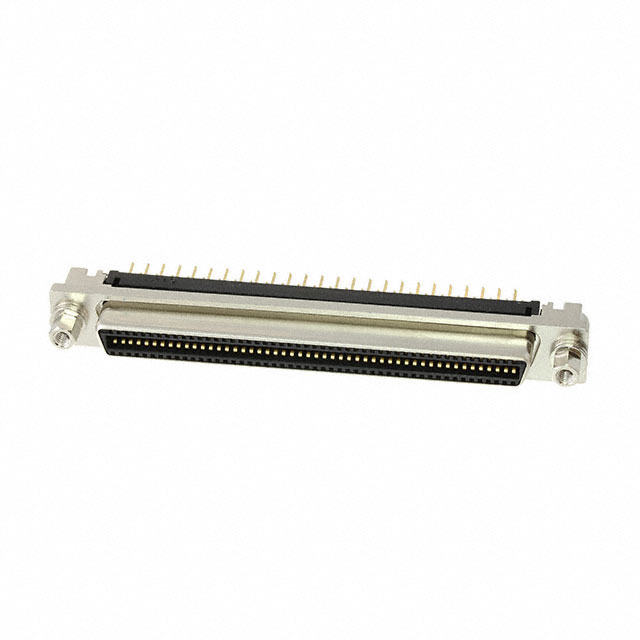

DX20A-100S(50)

Active

Hirose Electric USA, Inc.

HIROSE ORIGINAL 1.27MM PITCH HIGH-DENSITY I/O CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

DX20A-100S(50)

Active

Hirose Electric USA, Inc.

HIROSE ORIGINAL 1.27MM PITCH HIGH-DENSITY I/O CONNECTORS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DX20A-100S(50)

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	7.87 µin
Contact Finish Thickness	0.2 µm
Mounting Type	Through Hole, Panel Mount
Number of Positions	100
Number of Rows	2
Termination	Solder
Type	Miniature High Density (HD)

DX20 Series

Part	Contact Finish	Termination	Connector Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Number of Positions	Type	Number of Rows	Flange Feature
Hirose Electric USA, Inc. DX20CM-68S(51)	Gold	Solder	Receptacle	Panel Mount Through Hole	0.3 Ám	11.8 Áin	Outer Shroud Contacts	68	Miniature High Density (HD)	2
Hirose Electric USA, Inc. DX20A-80S(50)	Gold	Solder	Receptacle	Panel Mount Through Hole	0.2 µm	7.87 µin	Outer Shroud Contacts	80	Miniature High Density (HD)	2
Hirose Electric USA, Inc. DX20A-50S(50)	Gold	Solder	Receptacle	Panel Mount Through Hole	0.2 µm	7.87 µin	Outer Shroud Contacts	50	Miniature High Density (HD)	2
Hirose Electric USA, Inc. DX20-36S(50)	Gold	Solder	Receptacle	Panel Mount Through Hole	0.2 µm	7.87 µin	Outer Shroud Contacts	36	Miniature High Density (HD)	2	Housing/Shell Latchblocks
Hirose Electric USA, Inc. DX20-80S(50)	Gold	Solder	Receptacle	Panel Mount Through Hole	0.2 µm	7.87 µin	Outer Shroud Contacts	80	Miniature High Density (HD)	2	Housing/Shell Latchblocks
Hirose Electric USA, Inc. DX20A-36S(50)	Gold	Solder	Receptacle	Panel Mount Through Hole	0.2 µm	7.87 µin	Outer Shroud Contacts	36	Miniature High Density (HD)	2
Hirose Electric USA, Inc. DX20A-68S(50)	Gold	Solder	Receptacle	Panel Mount Through Hole	0.2 µm	7.87 µin	Outer Shroud Contacts	68	Miniature High Density (HD)	2
Hirose Electric USA, Inc. DX20A-100S(50)	Gold	Solder	Receptacle	Panel Mount Through Hole	0.2 µm	7.87 µin	Outer Shroud Contacts	100	Miniature High Density (HD)	2
Hirose Electric USA, Inc. DX20BM-68S(50)	Gold	Solder	Receptacle	Panel Mount Through Hole			Outer Shroud Contacts	68	Miniature High Density (HD)	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.57
		15	$ 17.83
		30	$ 16.90
		45	$ 16.65
		90	$ 14.70
		240	$ 13.72
		450	$ 13.42
Newark	Each	1	$ 22.00
		105	$ 19.40

Description

General part information

DX20 Series

100 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole Solder
