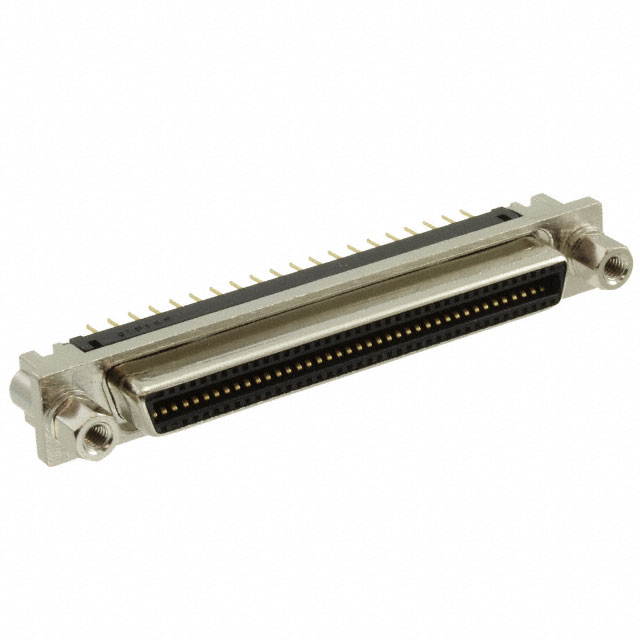

DX20A-80S(50)
ActiveHirose Electric USA, Inc.
CONN RECEPT 80POS STRT
Deep-Dive with AI
Search across all available documentation for this part.
DX20A-80S(50)
ActiveHirose Electric USA, Inc.
CONN RECEPT 80POS STRT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DX20A-80S(50) |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 7.87 µin |
| Contact Finish Thickness | 0.2 µm |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Termination | Solder |
| Type | Miniature High Density (HD) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 20.54 | |
| 10 | $ 15.82 | |||
| 25 | $ 14.31 | |||
| 40 | $ 13.62 | |||
| 80 | $ 12.66 | |||
| 230 | $ 11.39 | |||
| 440 | $ 10.69 | |||
| 945 | $ 9.99 | |||
Description
General part information
DX20 Series
80 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole Solder
