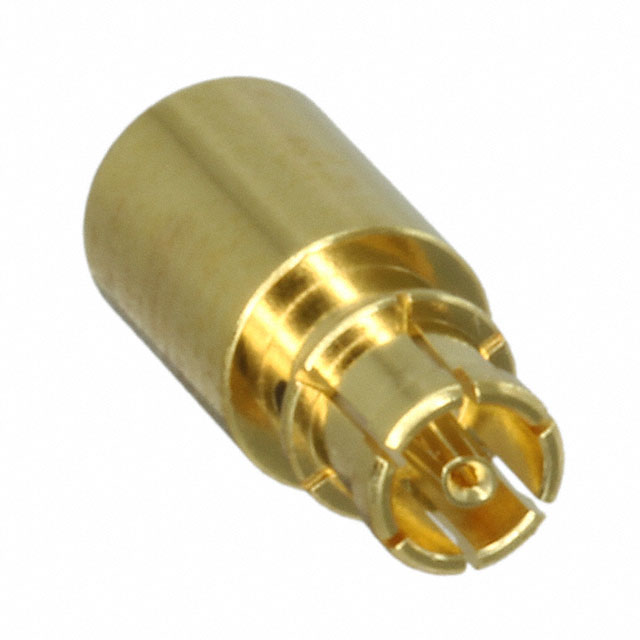

SMPM-TMJ

Hirose Electric USA, Inc.

CONN TERMINATOR JACK

Search across all available documentation for this part.

Hirose Electric USA, Inc.

CONN TERMINATOR JACK

Technical Specifications

Parameters and characteristics for this part

Specification	SMPM-TMJ

Body Finish	Gold
Body Material	Beryllium Copper
Connector Style	SMPM
Connector Type	Female Socket, Jack
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	50 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Adapter Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Convert From (Adapter End)	Convert From (Adapter End)	Dielectric Material	Body Finish	Frequency - Max [Max]	Features	Center Contact Plating	Convert To (Adapter End)	Mating Cycles	Center Contact Material	Impedance	Style	Center Gender	Adapter Series	Adapter Series	Conversion Type	Mounting Type	Connector Style	Contact Finish	Connector Type	Contact Material
Hirose Electric USA, Inc. SMPMP(SB)-HVP	Plug to Plug	Snap-On Threaded	-55 °C	125 °C	Stainless Steel	1.85 mm	Plug Male Pin	Polytetrafluoroethylene (PTFE)	Gold	65 GHz	Smooth Bore	Gold	Male Pin SMPM Plug	500	Phosphor Bronze	50 Ohms	Straight	Male to Male	1.85 mm	SMPM	Between Series	Free Hanging (In-Line)
Hirose Electric USA, Inc. SMPM-TMJ					Beryllium Copper			Polytetrafluoroethylene (PTFE)	Gold	50 GHz						50 Ohms						Cap Free Hanging	SMPM	Gold	Female Socket Jack	Beryllium Copper
Hirose Electric USA, Inc. SMPMP(FD)-HVP	Plug to Plug	Snap-On Threaded	-55 °C	125 °C	Stainless Steel	1.85 mm	Plug Male Pin	Polytetrafluoroethylene (PTFE)	Gold; Passivated	65 GHz	Full Detent	Gold	Male Pin SMPM Plug		Phosphor Bronze	50 Ohms	Straight	Male to Male	1.85 mm	SMPM	Between Series	Free Hanging (In-Line)
Hirose Electric USA, Inc. SMPM-A-JJ-532	Jack to Jack	Snap-On	-55 °C	125 °C	Beryllium Copper		Female Socket SMPM Jack	Polytetrafluoroethylene (PTFE)	Gold	65 GHz		Gold	Female Socket SMPM Jack		Beryllium Copper	50 Ohms	Straight	Female to Female		SMPM to SMPM	Same Series	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 309.06

General part information

Terminator Coax Connector Jack, Female Socket SMPM 50 Ohms

Technical documentation and resources

No documents available
