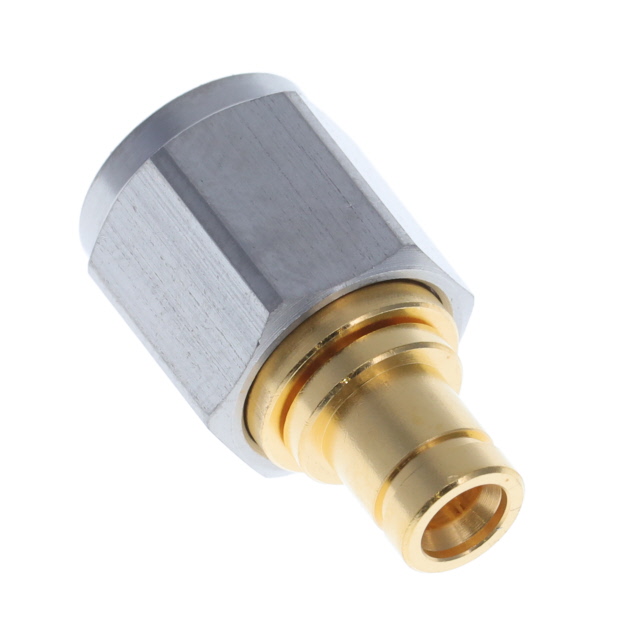

SMPMP(SB)-HVP

Active

Hirose Electric USA, Inc.

PUSH-ON LOCK, SMPM COAXIAL CONNECTORS IN MIL STANDARD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

PUSH-ON LOCK, SMPM COAXIAL CONNECTORS IN MIL STANDARD

Technical Specifications

Parameters and characteristics for this part

Specification	SMPMP(SB)-HVP

Adapter Series	1.85 mm
Adapter Series	SMPM
Adapter Type	Plug to Plug
Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	1.85 mm
Convert From (Adapter End)	Plug, Male Pin
Convert To (Adapter End)	Male Pin, SMPM Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Features	Smooth Bore
Frequency - Max [Max]	65 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Adapter Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Convert From (Adapter End)	Convert From (Adapter End)	Dielectric Material	Body Finish	Frequency - Max [Max]	Features	Center Contact Plating	Convert To (Adapter End)	Mating Cycles	Center Contact Material	Impedance	Style	Center Gender	Adapter Series	Adapter Series	Conversion Type	Mounting Type	Connector Style	Contact Finish	Connector Type	Contact Material
Hirose Electric USA, Inc. SMPMP(SB)-HVP	Plug to Plug	Snap-On Threaded	-55 °C	125 °C	Stainless Steel	1.85 mm	Plug Male Pin	Polytetrafluoroethylene (PTFE)	Gold	65 GHz	Smooth Bore	Gold	Male Pin SMPM Plug	500	Phosphor Bronze	50 Ohms	Straight	Male to Male	1.85 mm	SMPM	Between Series	Free Hanging (In-Line)
Hirose Electric USA, Inc. SMPM-TMJ					Beryllium Copper			Polytetrafluoroethylene (PTFE)	Gold	50 GHz						50 Ohms						Cap Free Hanging	SMPM	Gold	Female Socket Jack	Beryllium Copper
Hirose Electric USA, Inc. SMPMP(FD)-HVP	Plug to Plug	Snap-On Threaded	-55 °C	125 °C	Stainless Steel	1.85 mm	Plug Male Pin	Polytetrafluoroethylene (PTFE)	Gold; Passivated	65 GHz	Full Detent	Gold	Male Pin SMPM Plug		Phosphor Bronze	50 Ohms	Straight	Male to Male	1.85 mm	SMPM	Between Series	Free Hanging (In-Line)
Hirose Electric USA, Inc. SMPM-A-JJ-532	Jack to Jack	Snap-On	-55 °C	125 °C	Beryllium Copper		Female Socket SMPM Jack	Polytetrafluoroethylene (PTFE)	Gold	65 GHz		Gold	Female Socket SMPM Jack		Beryllium Copper	50 Ohms	Straight	Female to Female		SMPM to SMPM	Same Series	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 1.85mm Plug, Male Pin To SMPM Plug, Male Pin 50 Ohms
