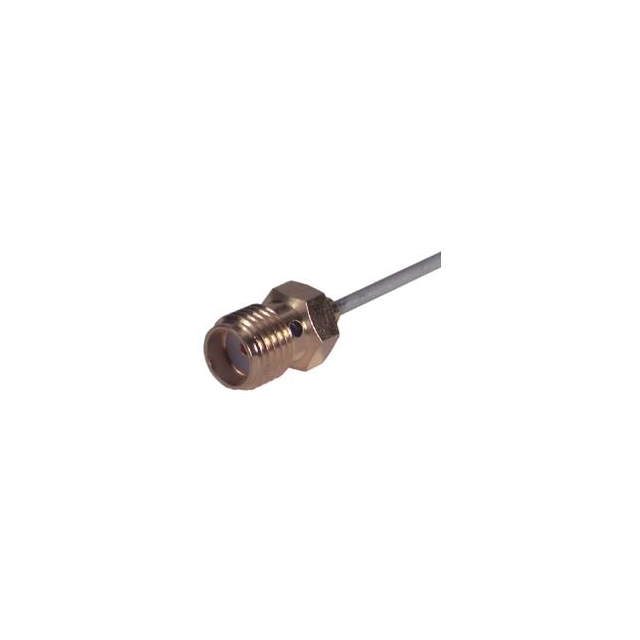

21_SMA-50-1-2/111_NE

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

21_SMA-50-1-2/111_NE

Active

Huber+Suhner, Inc.

21_SMA-50-1-2/111_NE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	21_SMA-50-1-2/111_NE

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	Semi Rigid
Cable Group	0.047 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

21_SMA-50 Series

Part	Contact Termination	Frequency - Max [Max]	Housing Color	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Body Finish	Dielectric Material	Body Material	Impedance	Center Contact Plating	Mating Cycles	Connector Type	Connector Style	Mounting Type	Number of Ports	Cable Group	Cable Group
Huber+Suhner, Inc. 21_SMA-50-2-6/111_NH	Solder	18 GHz	Gold	Crimp	-65 ░C	165 °C	Beryllium Copper	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	50 Ohms	Gold	500	Female Socket Jack	SMA	Free Hanging (In-Line)	1
Huber+Suhner, Inc. 21_SMA-50-1-1/111_NE	Solder	18 GHz	Gold	Solder	-65 ░C	165 °C	Beryllium Copper	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	50 Ohms	Gold	500	Female Socket Jack	SMA	Free Hanging (In-Line)	1
Huber+Suhner, Inc. 21_SMA-50-2-15/111_NH	Solder	18 GHz	Gold	Solder	-65 ░C	165 °C	Beryllium Copper	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	50 Ohms	Gold	500	Female Socket Jack	SMA	Free Hanging (In-Line)	1	RG-405
Huber+Suhner, Inc. 21_SMA-50-1-2/111_NE	Solder	18 GHz	Gold	Solder	-65 ░C	125 °C	Beryllium Copper	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	50 Ohms	Gold	500	Female Socket Jack	SMA	Free Hanging (In-Line)	1	Semi Rigid	0.047 in
Huber+Suhner, Inc. 21_SMA-50-3-18/111_YH	Solder	18 GHz	Gold	Solder	-65 ░C	165 °C	Beryllium Copper	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Brass	50 Ohms	Gold	500	Female Socket Jack	SMA	Free Hanging (In-Line)	1	RG-141
Huber+Suhner, Inc. 21_SMA-50-2-15/111_NE	Solder	18 GHz	Gold	Solder	-65 ░C	165 °C	Beryllium Copper	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	50 Ohms	Gold	500	Female Socket Jack	SMA	Free Hanging (In-Line)	1	RG-405
Huber+Suhner, Inc. 21_SMA-50-3-15/111_NE	Solder	18 GHz	Gold	Solder	-65 ░C	165 °C	Beryllium Copper	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	50 Ohms	Gold	500	Female Socket Jack	SMA	Free Hanging (In-Line)	1	RG-141

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.77
		10	$ 19.06
		25	$ 18.24
		50	$ 17.65
		100	$ 17.06
		250	$ 16.12
		500	$ 15.65

Description

General part information

21_SMA-50 Series

SMA Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
