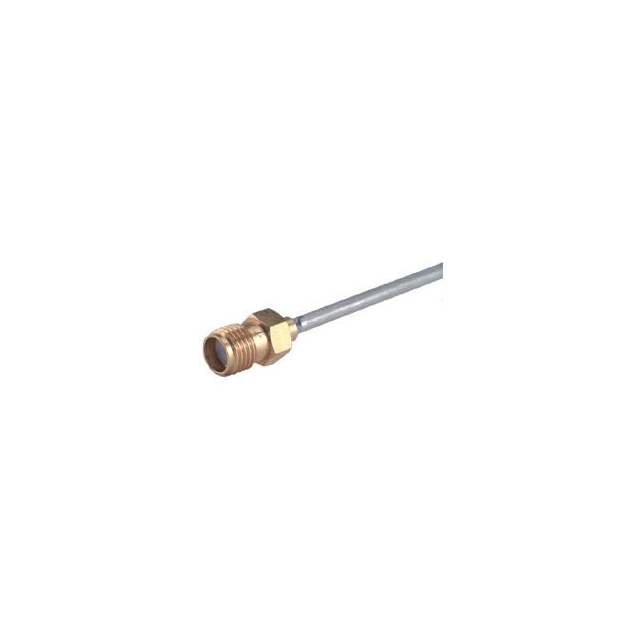

21_SMA-50-2-15/111_NE

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

21_SMA-50-2-15/111_NE

Active

Huber+Suhner, Inc.

21_SMA-50-2-15/111_NE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	21_SMA-50-2-15/111_NE

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-405
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

21_SMA-50 Series

Part	Contact Termination	Frequency - Max [Max]	Housing Color	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Body Finish	Dielectric Material	Body Material	Impedance	Center Contact Plating	Mating Cycles	Connector Type	Connector Style	Mounting Type	Number of Ports	Cable Group	Cable Group
Huber+Suhner, Inc. 21_SMA-50-2-6/111_NH	Solder	18 GHz	Gold	Crimp	-65 ░C	165 °C	Beryllium Copper	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	50 Ohms	Gold	500	Female Socket Jack	SMA	Free Hanging (In-Line)	1
Huber+Suhner, Inc. 21_SMA-50-1-1/111_NE	Solder	18 GHz	Gold	Solder	-65 ░C	165 °C	Beryllium Copper	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	50 Ohms	Gold	500	Female Socket Jack	SMA	Free Hanging (In-Line)	1
Huber+Suhner, Inc. 21_SMA-50-2-15/111_NH	Solder	18 GHz	Gold	Solder	-65 ░C	165 °C	Beryllium Copper	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	50 Ohms	Gold	500	Female Socket Jack	SMA	Free Hanging (In-Line)	1	RG-405
Huber+Suhner, Inc. 21_SMA-50-1-2/111_NE	Solder	18 GHz	Gold	Solder	-65 ░C	125 °C	Beryllium Copper	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	50 Ohms	Gold	500	Female Socket Jack	SMA	Free Hanging (In-Line)	1	Semi Rigid	0.047 in
Huber+Suhner, Inc. 21_SMA-50-3-18/111_YH	Solder	18 GHz	Gold	Solder	-65 ░C	165 °C	Beryllium Copper	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Brass	50 Ohms	Gold	500	Female Socket Jack	SMA	Free Hanging (In-Line)	1	RG-141
Huber+Suhner, Inc. 21_SMA-50-2-15/111_NE	Solder	18 GHz	Gold	Solder	-65 ░C	165 °C	Beryllium Copper	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	50 Ohms	Gold	500	Female Socket Jack	SMA	Free Hanging (In-Line)	1	RG-405
Huber+Suhner, Inc. 21_SMA-50-3-15/111_NE	Solder	18 GHz	Gold	Solder	-65 ░C	165 °C	Beryllium Copper	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	50 Ohms	Gold	500	Female Socket Jack	SMA	Free Hanging (In-Line)	1	RG-141

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.22
		10	$ 14.80
		25	$ 13.39
		50	$ 12.44
		100	$ 11.57
		250	$ 10.56
		500	$ 9.87
		1000	$ 9.28

Description

General part information

21_SMA-50 Series

SMA Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
