FX2BA-80PA-1.27DSAL(71)
ActiveHirose Electric USA, Inc.

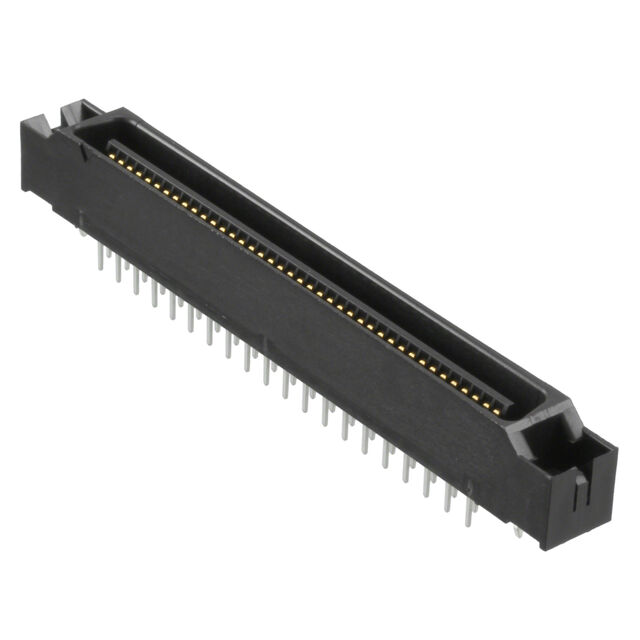

BOARD STACKING CONNECTOR, 80 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, SOLDER TERMINAL, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
FX2BA-80PA-1.27DSAL(71)
ActiveHirose Electric USA, Inc.
BOARD STACKING CONNECTOR, 80 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, SOLDER TERMINAL, ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FX2BA-80PA-1.27DSAL(71) |
|---|---|
| Connector Style | Center Strip Contacts |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 7.87 µin |
| Contact Finish Thickness | 0.2 µm |
| Mounting Type | Through Hole |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Termination | Solder |
FX2B Series
| Part | Number of Positions | Termination | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Mounting Type | Number of Rows | Contact Finish | Features | Contact Finish Thickness | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 80 | Solder | Plug | 7.87 µin | 0.2 µm | Center Strip Contacts | Through Hole | 2 | Gold | |||
Hirose Electric USA, Inc. | 60 | IDC | Receptacle | Outer Shroud Contacts | Free Hanging (In-Line) | 2 | Gold | Strain Relief | Flash | |||
Hirose Electric USA, Inc. | 80 | Solder | Plug | 7.87 µin | 0.2 µm | Center Strip Contacts | Through Hole | 2 | Gold | |||
Hirose Electric USA, Inc. | 80 | IDC | Receptacle | Outer Shroud Contacts | Free Hanging (In-Line) | 2 | Gold | Strain Relief | Flash | |||
Hirose Electric USA, Inc. | 20 | Solder | Plug | 7.87 µin | 0.2 µm | Center Strip Contacts | Through Hole | 2 | Gold | |||
Hirose Electric USA, Inc. | 40 | IDC | Receptacle | Outer Shroud Contacts | Free Hanging (In-Line) | 2 | Gold | Strain Relief | Flash | |||
Hirose Electric USA, Inc. | Solder | Plug | 7.87 µin | 0.2 µm | Center Strip Contacts | Through Hole Right Angle | 2 | Gold | Board to Board | |||
Hirose Electric USA, Inc. | 80 | Solder | Plug | 7.87 µin | 0.2 µm | Center Strip Contacts | Through Hole | 2 | Gold | |||
Hirose Electric USA, Inc. | 80 | IDC | Receptacle | Outer Shroud Contacts | Free Hanging (In-Line) | 2 | Gold | |||||
Hirose Electric USA, Inc. | 52 | Solder | Plug | 7.87 µin | 0.2 µm | Center Strip Contacts | Through Hole | 2 | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.39 | |
| 10 | $ 5.66 | |||
| 25 | $ 5.11 | |||
| 40 | $ 4.85 | |||
| 80 | $ 4.50 | |||
| 230 | $ 4.03 | |||
| 440 | $ 3.77 | |||
| 945 | $ 3.50 | |||
| 2400 | $ 3.20 | |||
Description
General part information
FX2B Series
80 Position Plug Connector Through Hole Solder
