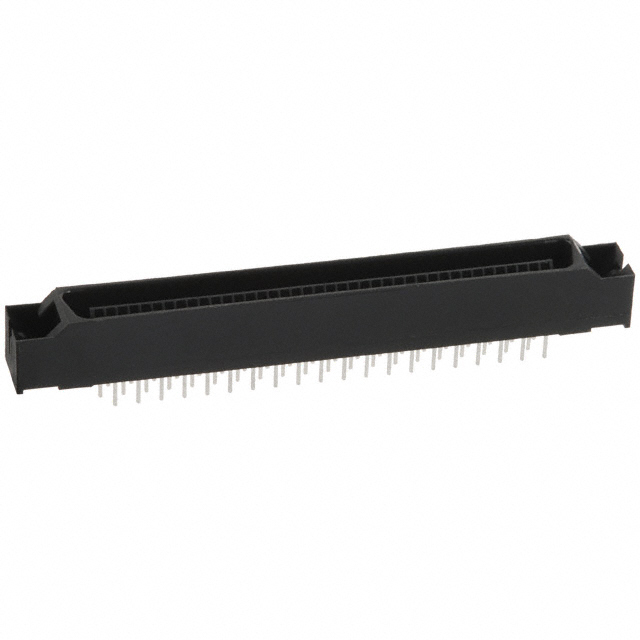

FX2B-80PA-1.27DSA(71)

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 80POS 1.27MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 80POS 1.27MM

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Termination	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Mounting Type	Number of Rows	Contact Finish	Features	Contact Finish Thickness	Type
Hirose Electric USA, Inc. FX2BA-80PA-1.27DSAL(71)	80	Solder	Plug	7.87 µin	0.2 µm	Center Strip Contacts	Through Hole	2	Gold
Hirose Electric USA, Inc. FX2B-60SA-1.27R	60	IDC	Receptacle			Outer Shroud Contacts	Free Hanging (In-Line)	2	Gold	Strain Relief	Flash
Hirose Electric USA, Inc. FX2B-80P-1.27DSAL(71)	80	Solder	Plug	7.87 µin	0.2 µm	Center Strip Contacts	Through Hole	2	Gold
Hirose Electric USA, Inc. FX2B-80SA-1.27R(02)	80	IDC	Receptacle			Outer Shroud Contacts	Free Hanging (In-Line)	2	Gold	Strain Relief	Flash
Hirose Electric USA, Inc. FX2BA-20P-1.27DSAL(71)	20	Solder	Plug	7.87 µin	0.2 µm	Center Strip Contacts	Through Hole	2	Gold
Hirose Electric USA, Inc. FX2B-40SA-1.27R(02)	40	IDC	Receptacle			Outer Shroud Contacts	Free Hanging (In-Line)	2	Gold	Strain Relief	Flash
Hirose Electric USA, Inc. FX2B-32P-1.27DSL(71)		Solder	Plug	7.87 µin	0.2 µm	Center Strip Contacts	Through Hole Right Angle	2	Gold			Board to Board
Hirose Electric USA, Inc. FX2B-80PA-1.27DSA(71)	80	Solder	Plug	7.87 µin	0.2 µm	Center Strip Contacts	Through Hole	2	Gold
Hirose Electric USA, Inc. FX2BN1-80SA-1.27R	80	IDC	Receptacle			Outer Shroud Contacts	Free Hanging (In-Line)	2	Gold
Hirose Electric USA, Inc. FX2B-52PA-1.27DSAL(71)	52	Solder	Plug	7.87 µin	0.2 µm	Center Strip Contacts	Through Hole	2	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Plug Connector Through Hole Solder
