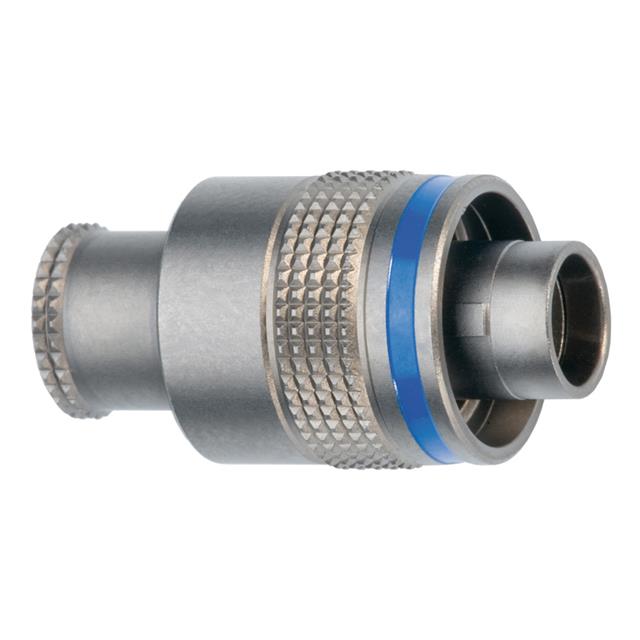

FMN.2M.514.XLCT6

Active

LEMO

CABLE MOUNT PLUG CAT6A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M Series Catalog

FMN.2M.514.XLCT6

Active

LEMO

CABLE MOUNT PLUG CAT6A

Deep-Dive with AI

DocumentsDatasheet M Series Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FMN.2M.514.XLCT6

Applications	Military, Aerospace, Automotive, Aviation
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Features	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-20 C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum
Shell Size - Insert	514
Shielding	Shielded
Termination	Crimp

FMN.2M Series

Part	Connector Type	Current Rating (Amps)	Number of Positions	Applications	Shielding	Contact Finish - Mating	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Orientation	Shell Finish	Insert Material	Primary Material	Features	Termination	Contact Material	Mounting Type	Color	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material
LEMO FMN.2M.310.XLCT	Male Pins Plug	8 A	10	Aerospace Automotive Aviation Military	Shielded	Gold	310	0.512 in	13 mm	N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp	Brass	Free Hanging (In-Line)	Gray	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	-55 °C	200 °C	Aluminum Alloy
LEMO FMN.2M.319.XLCT	Male Pins Plug	4 A	19	Aerospace Automotive Aviation Military	Shielded	Gold	319	0.512 in	13 mm	N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp	Brass	Free Hanging (In-Line)	Gray	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	-55 °C	200 °C	Aluminum Alloy
LEMO FMN.2M.312.XLCT	Male Pins Plug	7 A	12	Aerospace Automotive Aviation Military	Shielded	Gold	312	0.512 in	13 mm	N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp	Brass	Free Hanging (In-Line)	Gray	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	-55 °C	200 °C	Aluminum Alloy
LEMO FMN.2M.308.XLCT	Male Pins Plug	10 A	8	Aerospace Automotive Aviation Military	Shielded	Gold	308	0.512 in	13 mm	N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp	Brass	Free Hanging (In-Line)	Gray	IP68 - Dust Tight Waterproof	1 µm	39.4 µin	-55 °C	200 °C	Aluminum Alloy
LEMO FMN.2M.514.XLCT6	Male Pins Plug		14	Aerospace Automotive Aviation Military	Shielded	Gold	514			N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp		Free Hanging (In-Line)	Gray	IP68 - Dust Tight Waterproof			-20 C	200 °C	Aluminum

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FMN.2M Series

14 Position Circular Connector Plug, Male Pins Crimp
