FMN.2M.319.XLCT
ActiveLEMO

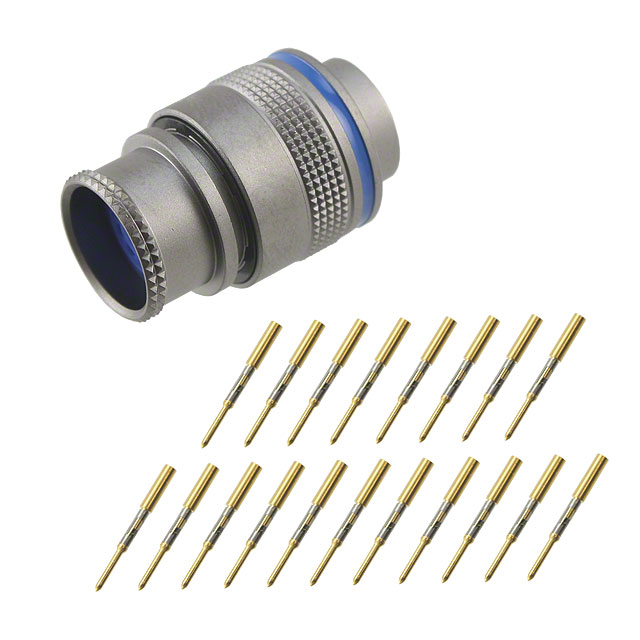

CONN PLUG MALE 19POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
FMN.2M.319.XLCT
ActiveLEMO
CONN PLUG MALE 19POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FMN.2M.319.XLCT |
|---|---|
| Applications | Military, Aerospace, Automotive, Aviation |
| Cable Opening [custom] | 0.512 in |
| Cable Opening [custom] | 13 mm |
| Color | Gray |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Material | Brass |
| Current Rating (Amps) | 4 A |
| Features | Coupling Nut |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 19 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 319 |
| Shielding | Shielded |
| Termination | Crimp |
FMN.2M Series
| Part | Connector Type | Current Rating (Amps) | Number of Positions | Applications | Shielding | Contact Finish - Mating | Shell Size - Insert | Cable Opening [custom] | Cable Opening [custom] | Orientation | Shell Finish | Insert Material | Primary Material | Features | Termination | Contact Material | Mounting Type | Color | Ingress Protection | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Male Pins Plug | 8 A | 10 | Aerospace Automotive Aviation Military | Shielded | Gold | 310 | 0.512 in | 13 mm | N | Nickel | Polyetheretherketone (PEEK) | Metal | Coupling Nut | Crimp | Brass | Free Hanging (In-Line) | Gray | IP68 - Dust Tight Waterproof | 1 µm | 39.4 µin | -55 °C | 200 °C | Aluminum Alloy |
LEMO | Male Pins Plug | 4 A | 19 | Aerospace Automotive Aviation Military | Shielded | Gold | 319 | 0.512 in | 13 mm | N | Nickel | Polyetheretherketone (PEEK) | Metal | Coupling Nut | Crimp | Brass | Free Hanging (In-Line) | Gray | IP68 - Dust Tight Waterproof | 1 µm | 39.4 µin | -55 °C | 200 °C | Aluminum Alloy |
LEMO | Male Pins Plug | 7 A | 12 | Aerospace Automotive Aviation Military | Shielded | Gold | 312 | 0.512 in | 13 mm | N | Nickel | Polyetheretherketone (PEEK) | Metal | Coupling Nut | Crimp | Brass | Free Hanging (In-Line) | Gray | IP68 - Dust Tight Waterproof | 1 µm | 39.4 µin | -55 °C | 200 °C | Aluminum Alloy |
LEMO | Male Pins Plug | 10 A | 8 | Aerospace Automotive Aviation Military | Shielded | Gold | 308 | 0.512 in | 13 mm | N | Nickel | Polyetheretherketone (PEEK) | Metal | Coupling Nut | Crimp | Brass | Free Hanging (In-Line) | Gray | IP68 - Dust Tight Waterproof | 1 µm | 39.4 µin | -55 °C | 200 °C | Aluminum Alloy |
LEMO | Male Pins Plug | 14 | Aerospace Automotive Aviation Military | Shielded | Gold | 514 | N | Nickel | Polyetheretherketone (PEEK) | Metal | Coupling Nut | Crimp | Free Hanging (In-Line) | Gray | IP68 - Dust Tight Waterproof | -20 C | 200 °C | Aluminum |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 112.17 | |
| 10 | $ 102.93 | |||
| 25 | $ 98.97 | |||
| 50 | $ 95.68 | |||
| 100 | $ 90.40 | |||
Description
General part information
FMN.2M Series
19 Position Circular Connector Plug, Male Pins Crimp
